4.6.11 Setting the Multifeed Detection Method
By default, multifeed detection will monitor for paper overlaps in the central column (17.5mm
either side from the center of the document) of the document being scanned. However, any photos
or attachments in this area will also be detected as a multifeed.
When scanning documents, multifeed detection area may be adjusted to ignore the area (excluding
the photograph or attachments) and prevent mis-detections.
For document requirements for multifeed detection, refer to "A.5 Multifeed Detection Conditions"
(page 484).
1. Select the [System Settings] tab on the top menu.
2. Select the [Multifeed Settings] tab on the left side menu.

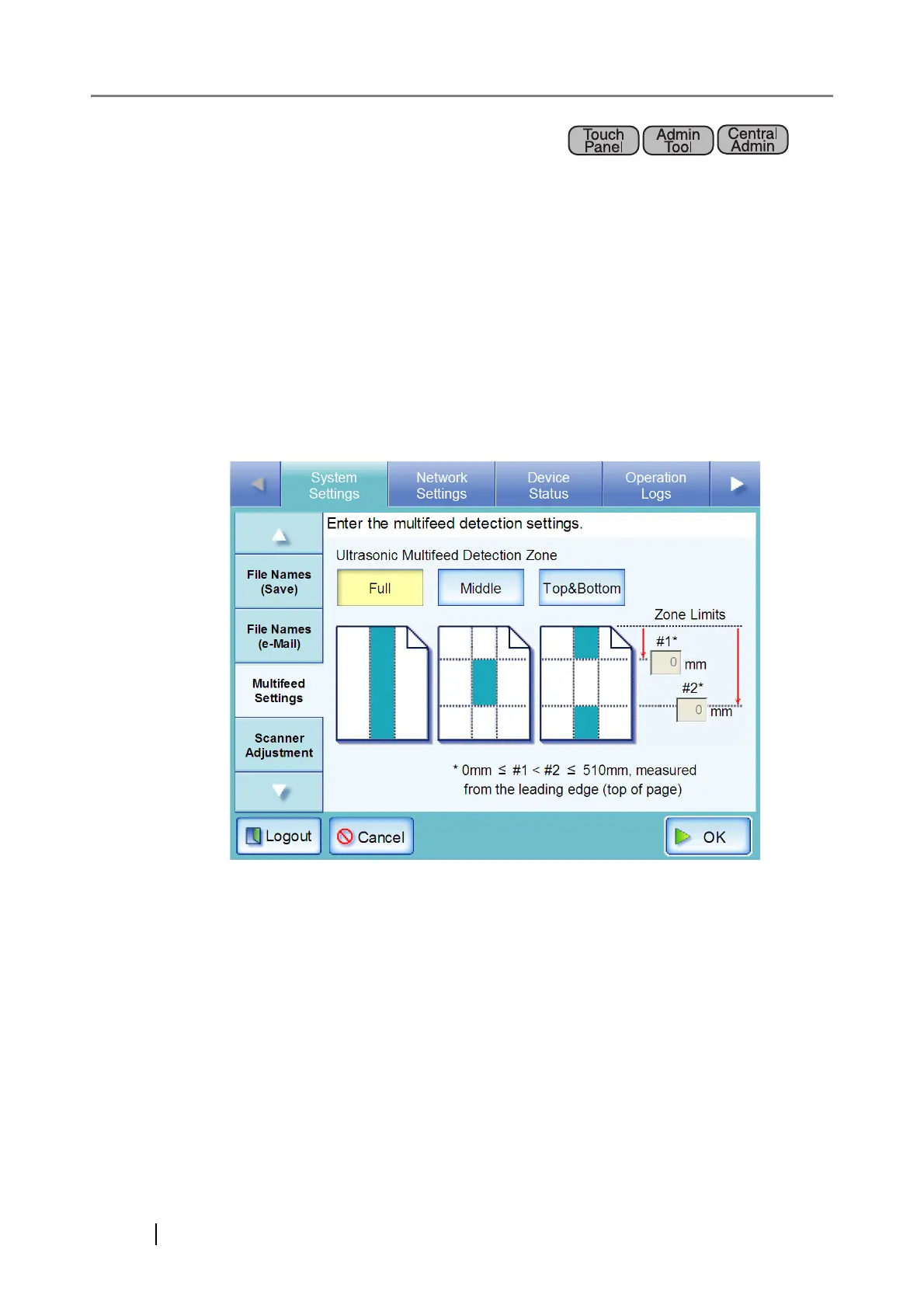

The "Multifeed Settings" screen appears.
To Next Page
