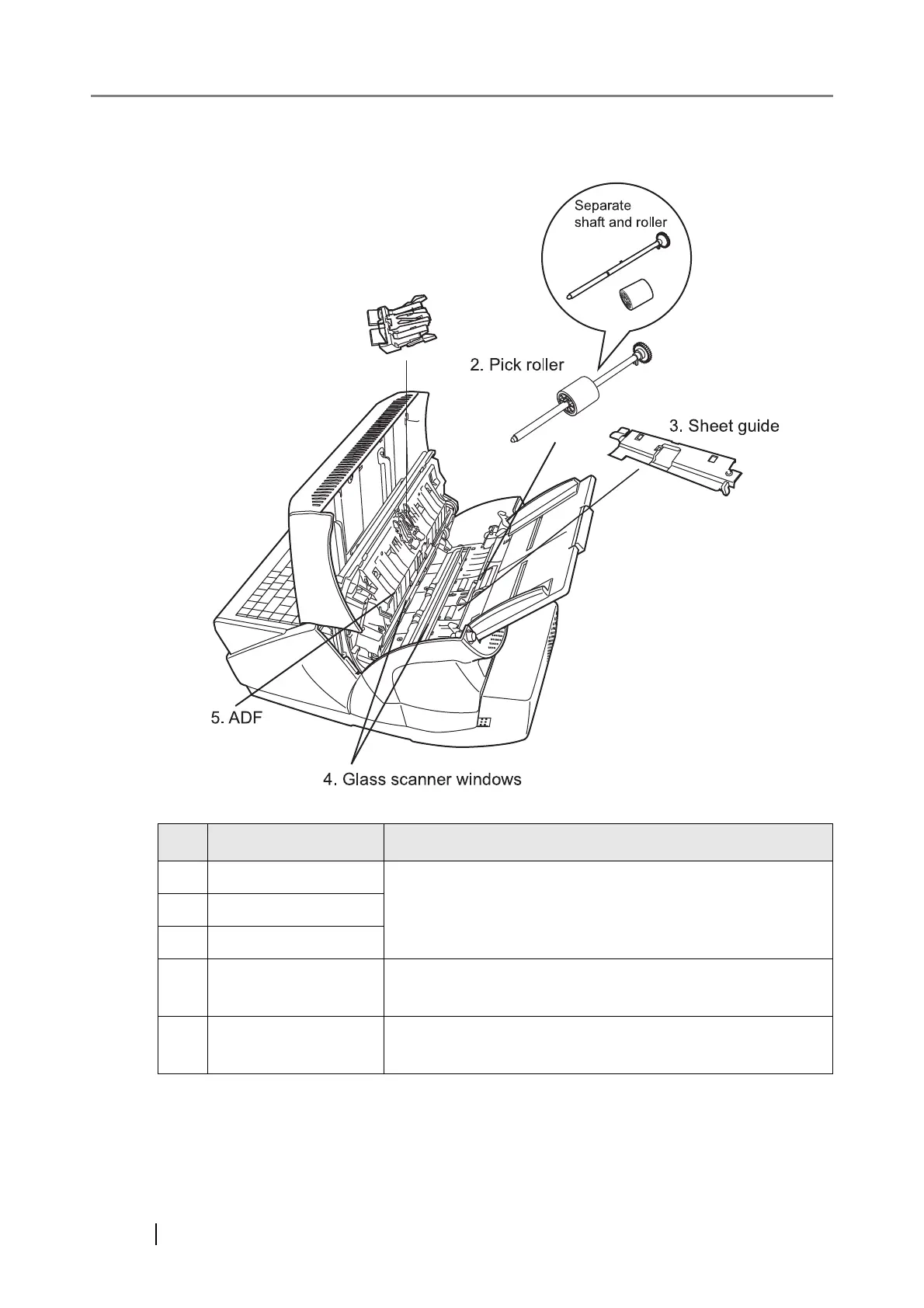

1.2.2 Internal Parts
No. Part name Function
1
Pad assy Help to guide documents from the ADF paper chute to the
glass scanner windows.
2
Pick roller
3
Sheet guide
4
Glass scanner win-
dows
Place where the documents are scanned.
5
ADF (Automatic Doc-
ument Feeder)
Drives the documents from the ADF paper chute, past the
glass scanner windows, to the output tray.
1. Pad assy
