6.6.1 Scaling

Set the print size for the scanned data.

The setting selected here will be used every time the user prints a document.

1. Press the [Scaling] button.

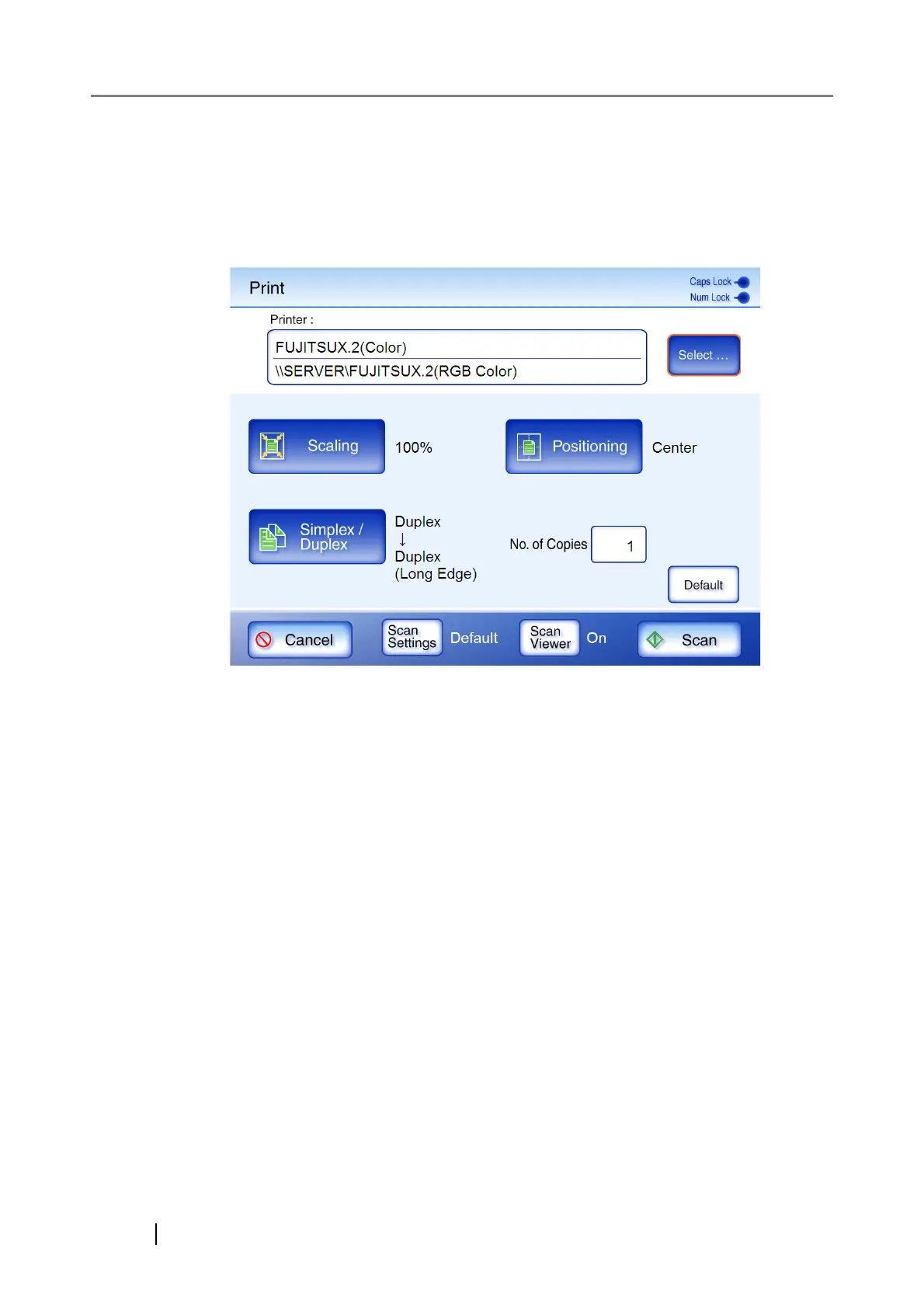

 The "Scaling" screen appears.
