7.6 Replacing Parts
fi-6010N Network Scanner Operator's Guide 441
7

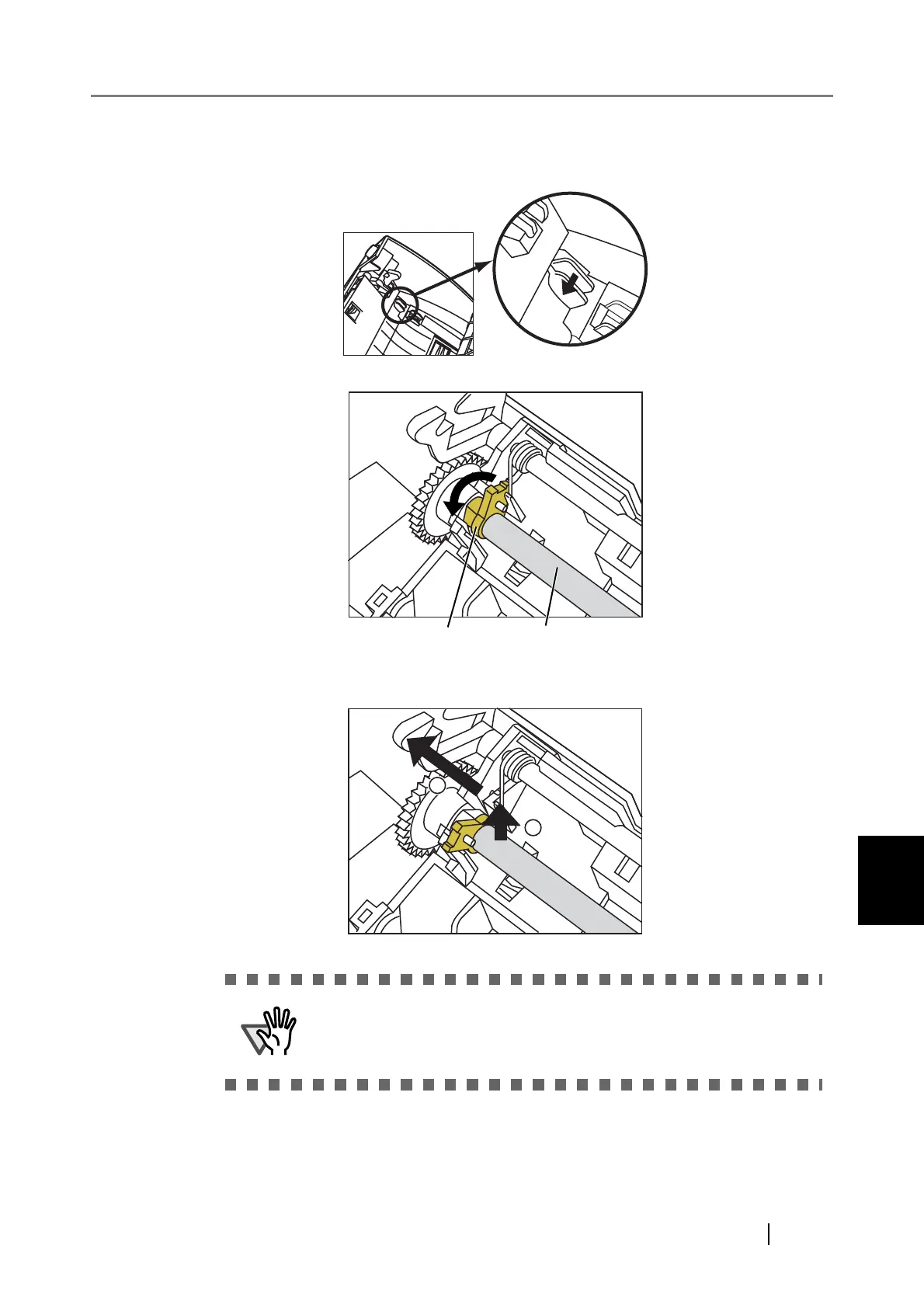

4. Remove the pick roller and its shaft from the scanner.
1. Squeeze the tabs of the sheet guide release catch together with your fingers, and lift the
sheet guide plate up and away.
2. Rotate the left side pick roller bushing in the direction indicated by the arrow.
3. Gently lift and slide the pick roller shaft out of the left side of the ADF in the direction of
the arrow. Be careful as it is easy to bind the shaft in the right side bushing.
The pick roller bearing may be hard to rotate. Do not try to turn it
with your fingernail. Use a paper clip to turn the roller bearing if you
can not rotate it with your fingertip.
Pick roller bushing
Pick roller shaft
1
2
