7.6 Replacing Parts
fi-6010N Network Scanner Operator's Guide 443
7
7. Insert the pick roller and shaft back in the scanner.
To attach the pick roller to the scanner, follow the pick roller and shaft removal procedure
in reverse.

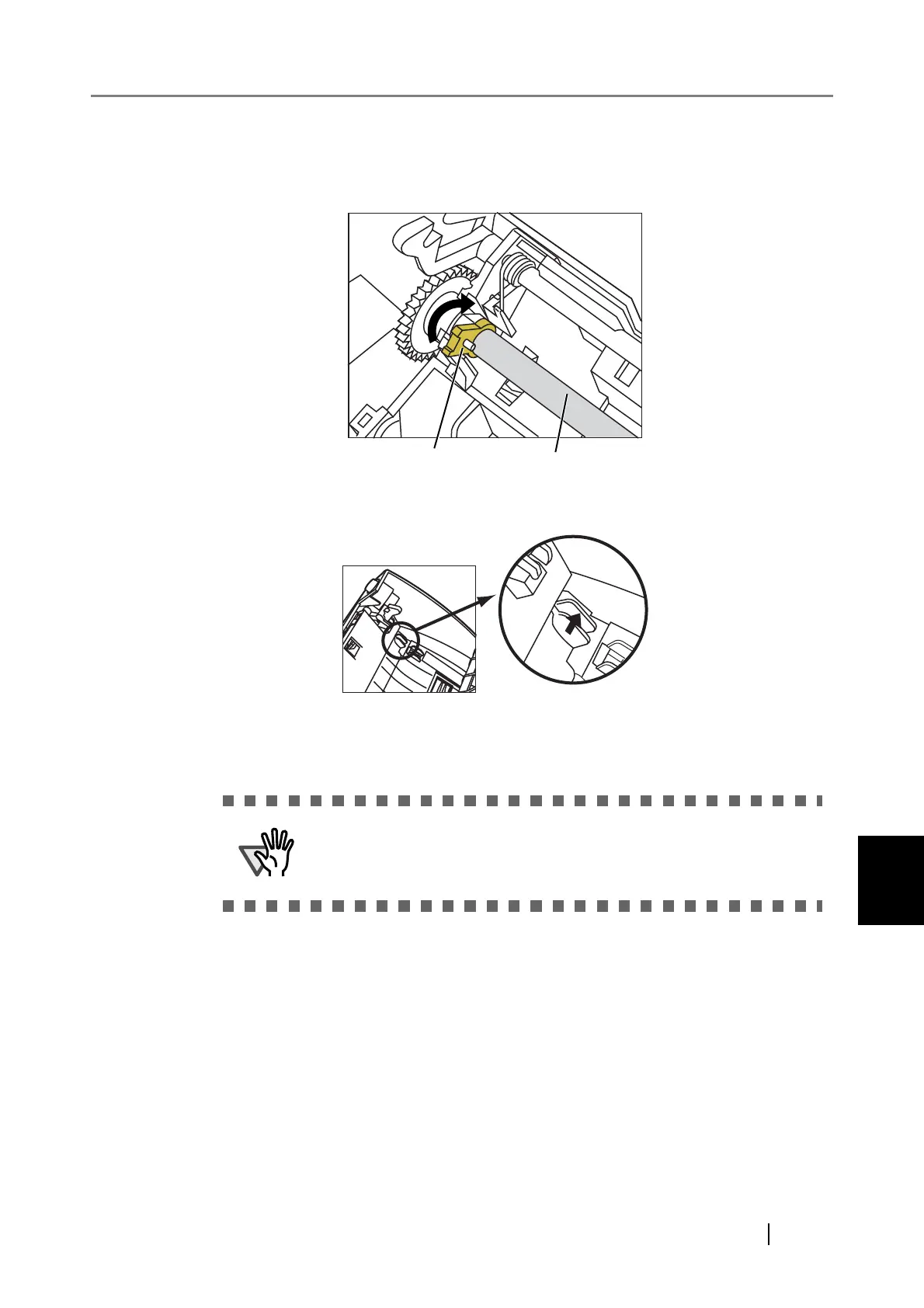

1. Rotate the left side pick roller bushing in the direction indicated by the arrow.
2. Open the tabs of the sheet guide release catch in the direction indicated by the arrow to
lock the sheet guide in place.
8. Close the top cover.
You should hear a click when it is returned to its original position.
9. Attach the ADF paper chute.
10. Reset the pick roller usage counter.
The usage counter must be reset by an administrator. For details, refer to "Resetting the
Usage Counter" (page 157).
Be careful that the top cover does not shut on your fingers.
Pick roller bushing
Pick roller shaft
To Next Page
