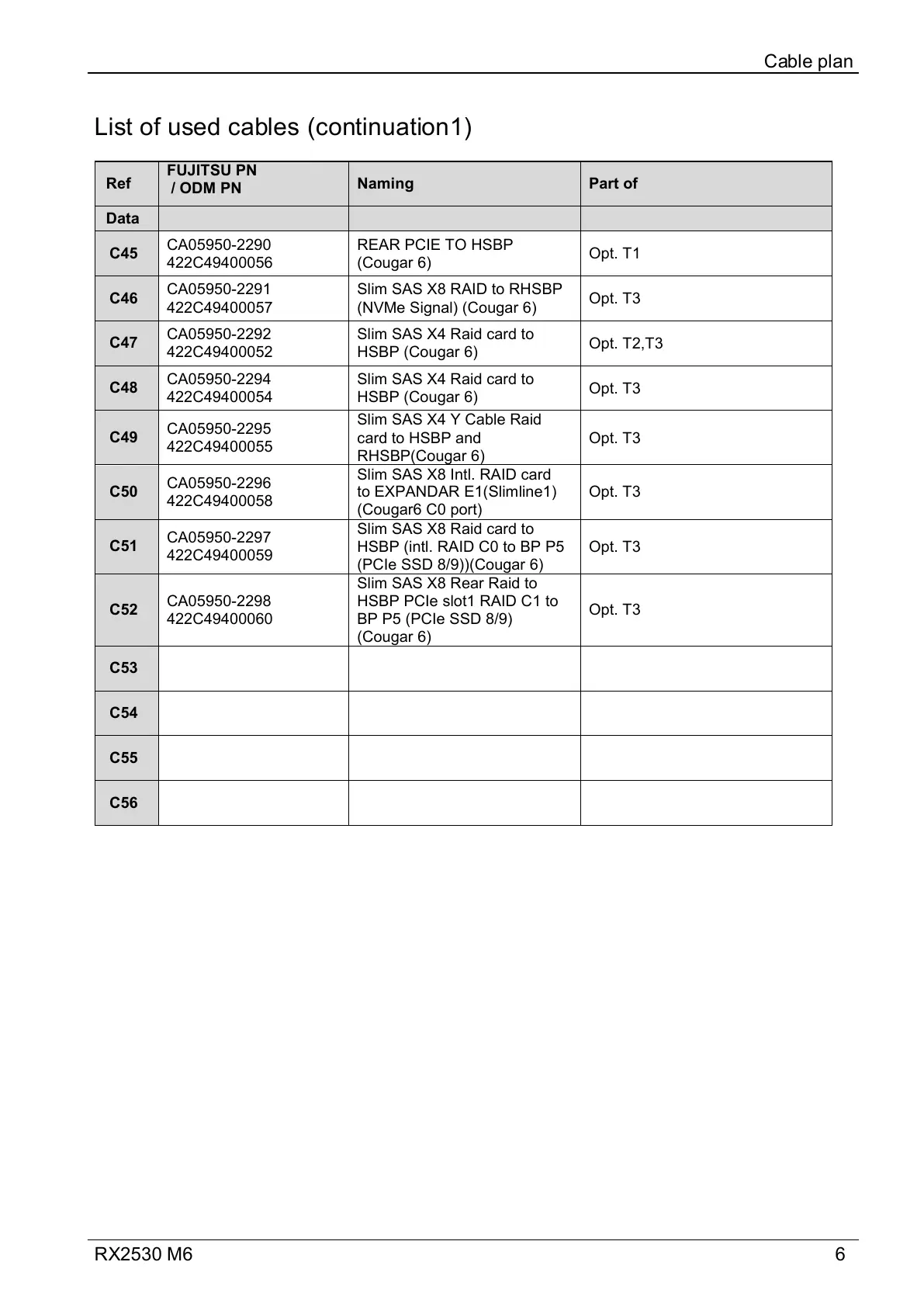

List of used cables (continuation1)
Cable plan
Ref
FUJITSU PN
/ ODM PN
Naming
Part of
Data
C45
CA05950-2290
422C49400056
REAR PCIE TO HSBP
(Cougar 6)
Opt. T1
C46
CA05950-2291
422C49400057
Slim SAS X8 RAID to RHSBP
(NVMe Signal) (Cougar 6)
Opt. T3
C47
CA05950-2292
422C49400052
Slim SAS X4 Raid card to
HSBP (Cougar 6)
Opt. T2,T3
C48
CA05950-2294
422C49400054
Slim SAS X4 Raid card to
HSBP (Cougar 6)
Opt. T3
C49
CA05950-2295
422C49400055
Slim SAS X4 Y Cable Raid
card to HSBP and
RHSBP(Cougar 6)
Opt. T3
C50
CA05950-2296
422C49400058
Slim SAS X8 Intl. RAID card
to EXPANDAR E1(Slimline1)
(Cougar6 C0 port)
Opt. T3
C51
CA05950-2297
422C49400059
Slim SAS X8 Raid card to
HSBP (intl. RAID C0 to BP P5
(PCIe SSD 8/9))(Cougar 6)
Opt. T3
C52
CA05950-2298
422C49400060
Slim SAS X8 Rear Raid to
HSBP PCIe slot1 RAID C1 to
BP P5 (PCIe SSD 8/9)
(Cougar 6)
Opt. T3
C53
C54
C55
C56
