4.10 Handling riser modules
4.10.1 Positions of riser modules

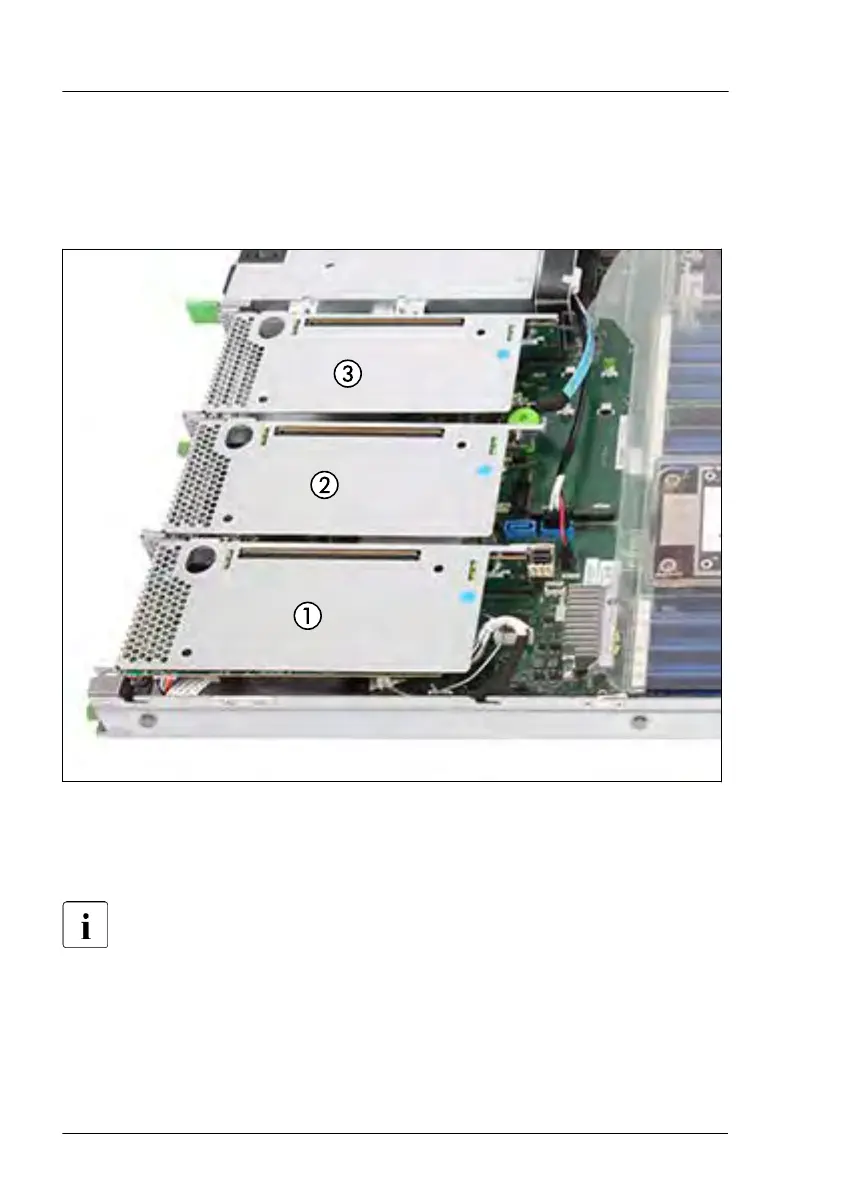

Figure 20: Positions of riser modules
1 Riser module 1, offers slot 1
2
Riser module 2, offers slot 2
3
Riser module 3, offers slot 3
As an option, a full height riser module can be installed. In this case the
slot 2 is not available and slot 3 can be equipped with a full height
expansion card.
Basic hardware procedures
68 Upgrade and Maintenance Manual RX2530 M6
