17 Appendix A
17.1 Mechanical overview
17.1.1 Server front
17.1.1.1
3.5-inch HDD configuration

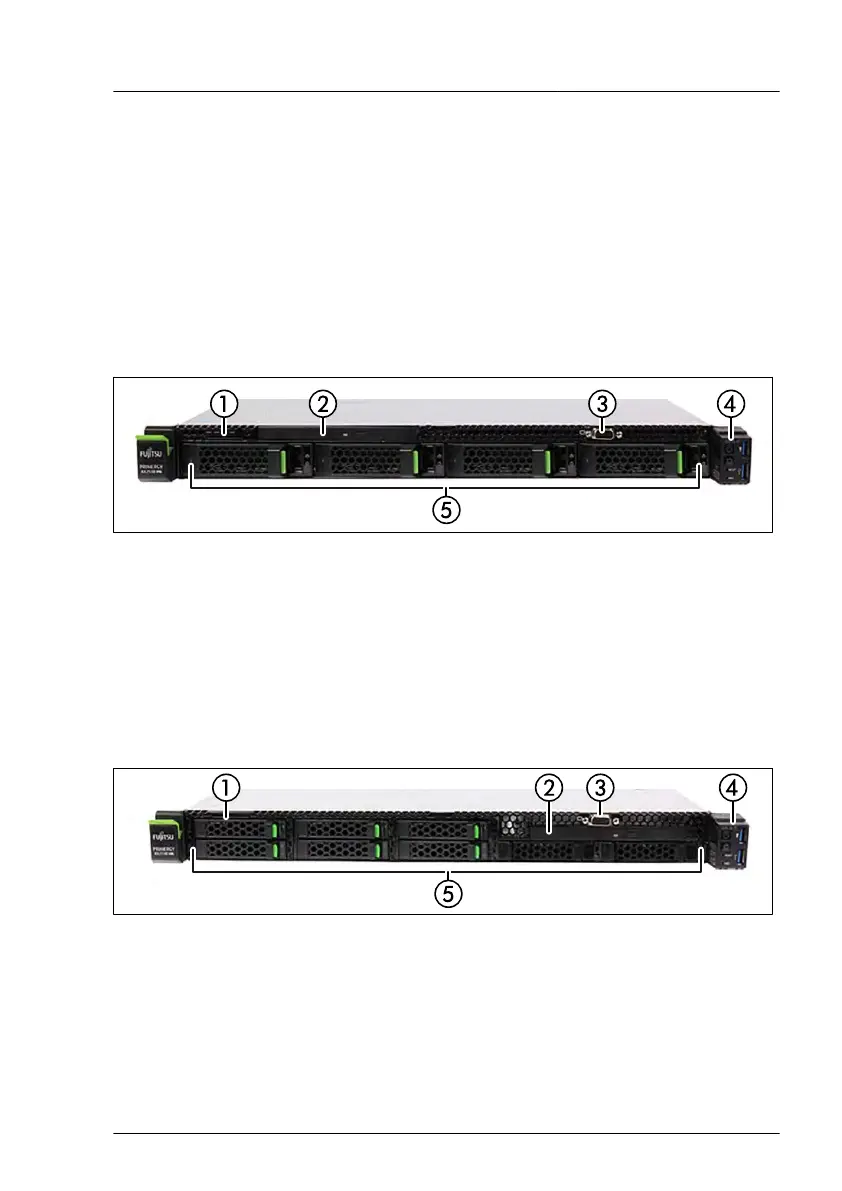

Figure 289: Server front type 1 (4x 3.5-inch SAS/SATA HDDs)
1 ID card
2
ODD / dummy cover
3
Front VGA
4
Common Operation Panel (COP)
5 HDDs / dummy modules
The ODD (2) and the Front VGA (3) are options.
17.1.1.2 2.5-inch HDD/SSD configuration
Figure 290: Server front type 2 (8x 2.5-inch SAS/SATA HDDs/SSDs)
RX2530 M6 Upgrade and Maintenance Manual 399
