16.8 VROC module
16.8.1 Installing the VROC module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 48.
▶
"Shutting down the server" on page
48.
▶
"Disconnecting the power cord" on page 49.
▶
"Getting access to the component" on page 52.
▶
Remove the riser module 1, see "Removing a riser module" on page 69.
Installing the VROC module

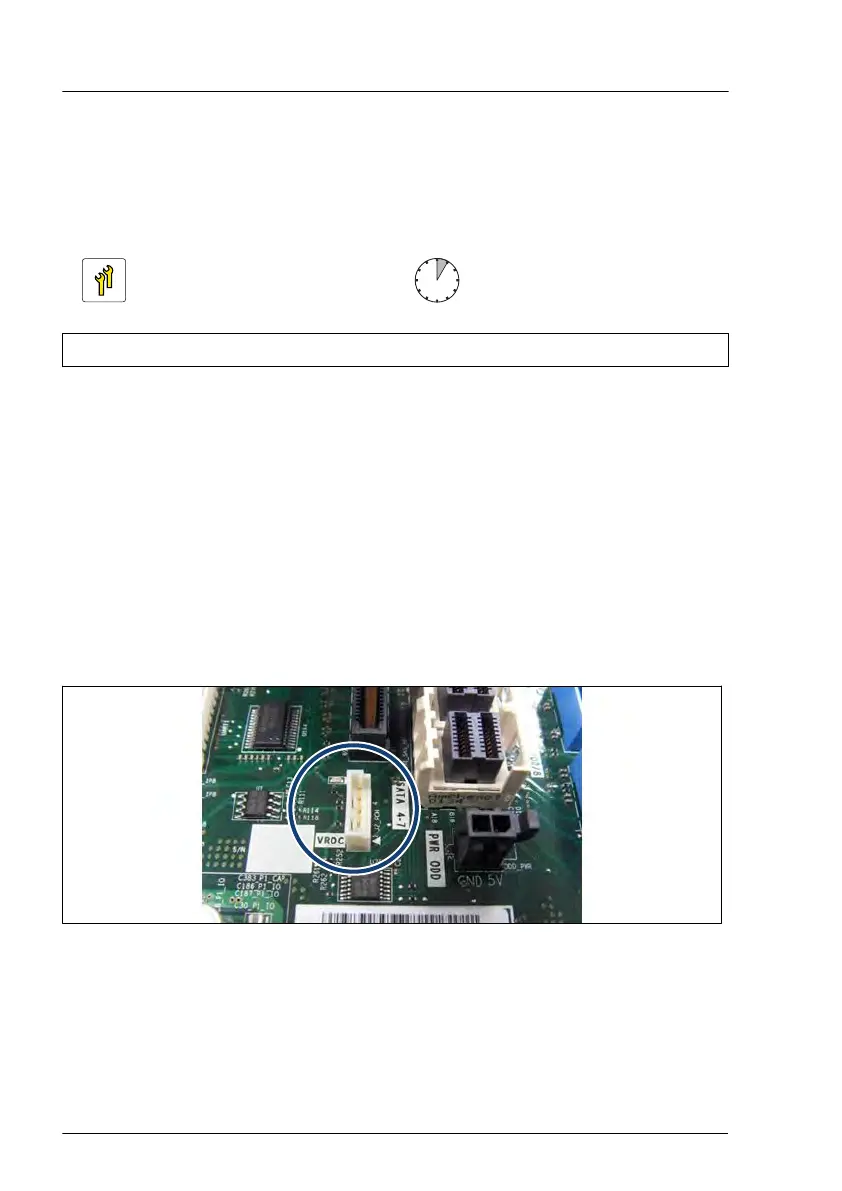

Figure 278: Position of the VROC connector
System board and components
382 Upgrade and Maintenance Manual RX2530 M6
