7.4.2 Installing 3.5-inch HDD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 48.
▶
Locate the correct drive bay
, see "Overview of configurations" on page 127.
Removing a 3.5-inch HDD dummy module

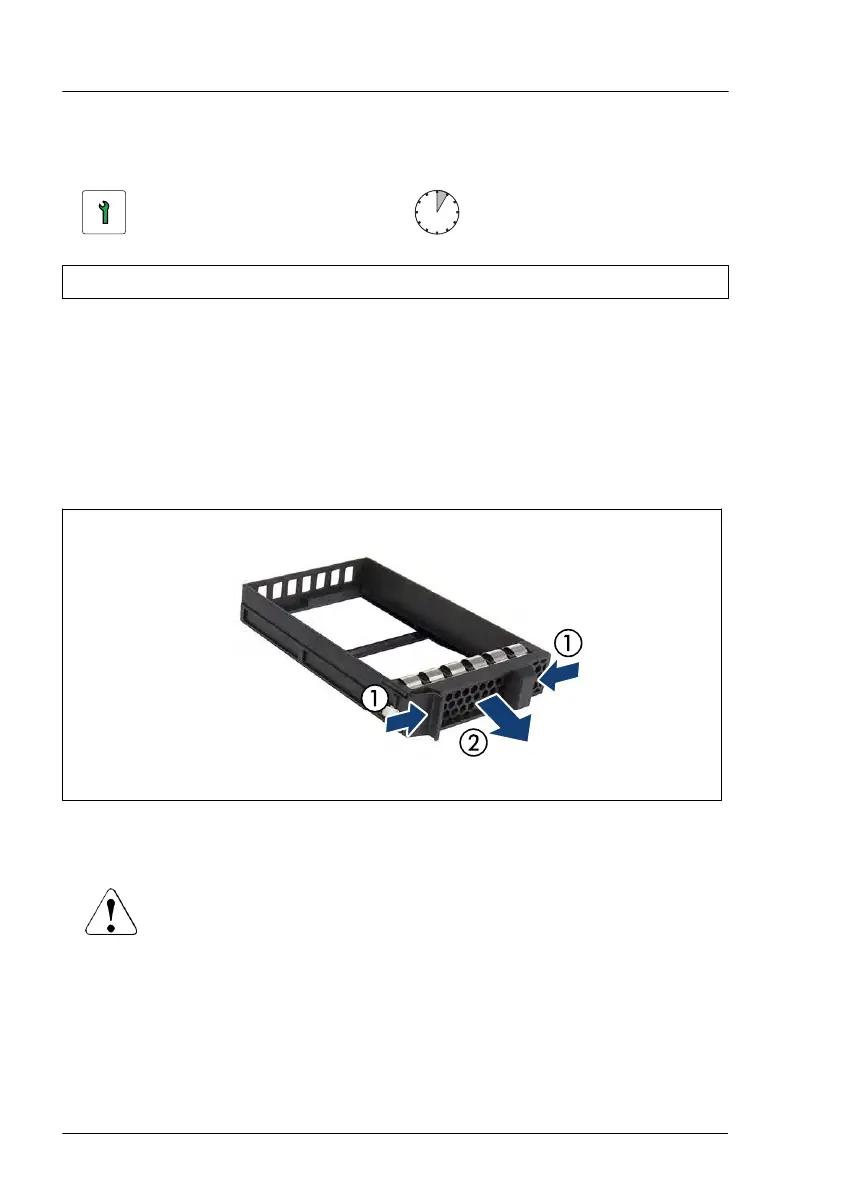

Figure 47: Removing the 3.5-inch dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay (2).
CAUTION
▶
Keep the dummy module for future use.
▶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
128 Upgrade and Maintenance Manual RX2530 M6
