Position Logical drive
number
ServerView RAID Manager display
name
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
7.5.2 Installing 2.5-inch HDD/SSD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: tool-less
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 48.
▶
Locate the correct drive bay
, see "Overview of configurations" on page 138.
Removing a 2.5-inch HDD/SSD dummy module

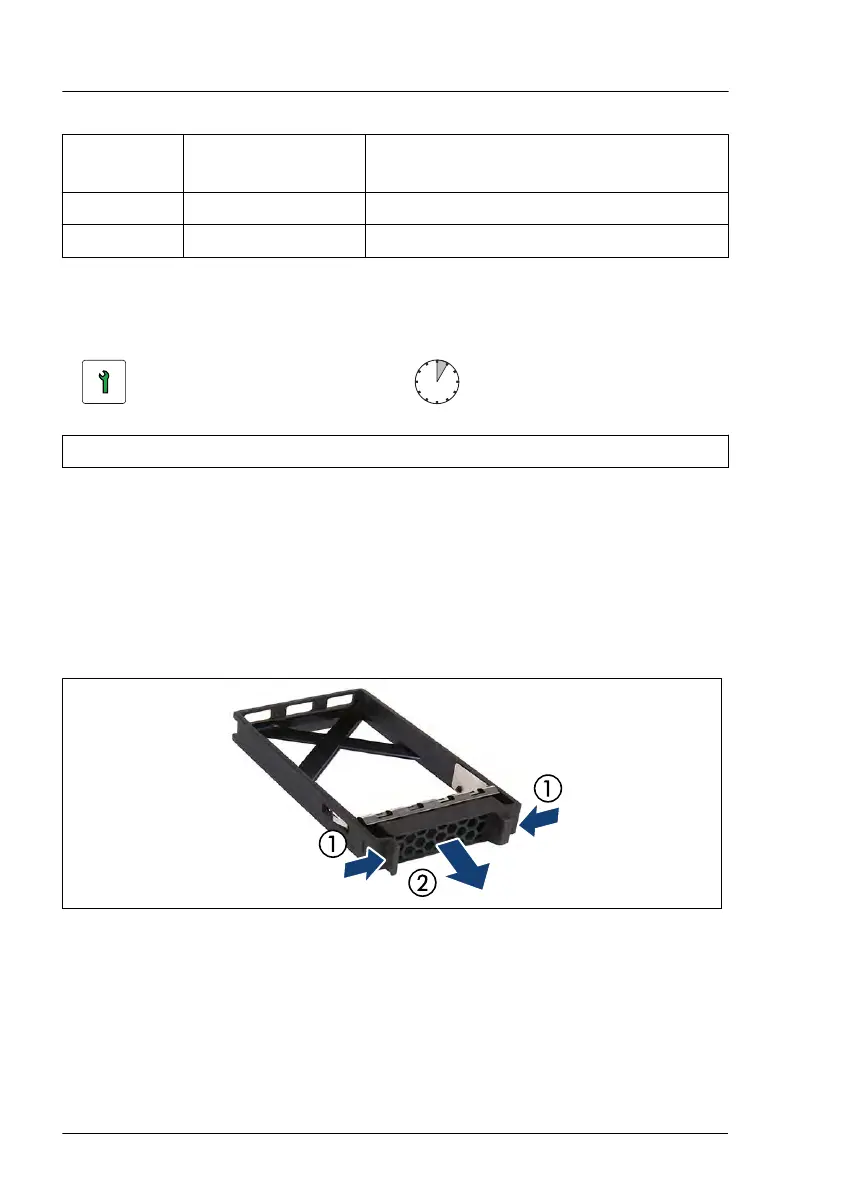

Figure 59: Removing a 2.5-inch HDD/SSD dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay
(2).
Hard disk drive (HDD) / solid state disk (SSD)
140 Upgrade and Maintenance Manual RX2530 M6
