"Getting access to the component" on page 52.
▶
Remove the riser module 1, see "Removing a riser module" on page
69.
Removing the VROC module

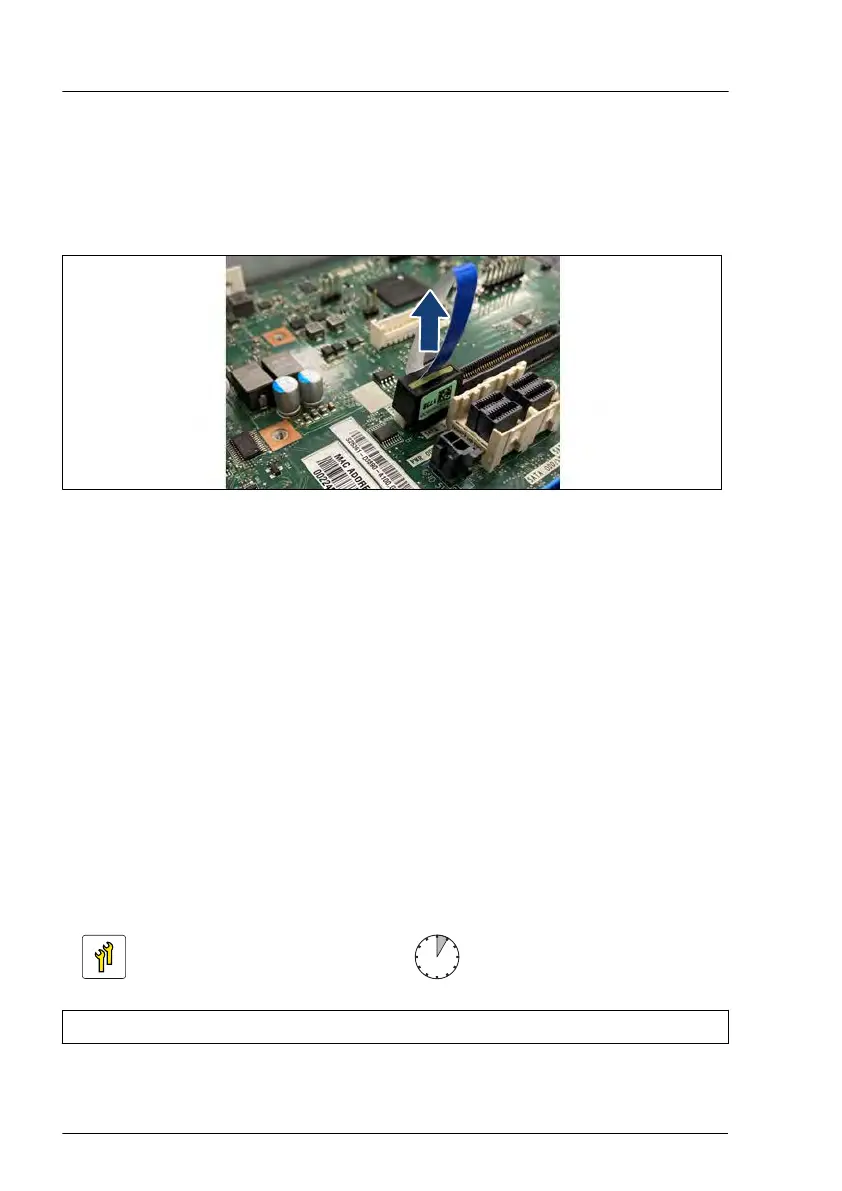

Figure 280: Removing the VROC module
▶
Disconnect the VROC module from the VROC connector on the system
board.
Concluding steps
▶
Install the riser module 1, see "Installing a riser module" on page
69.
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
16.8.3 Replacing the VROC module
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
System board and components
384 Upgrade and Maintenance Manual RX2530 M6
