Fujitsu PRIMERGY RX2530 M6

4.10.2 Removing a riser module

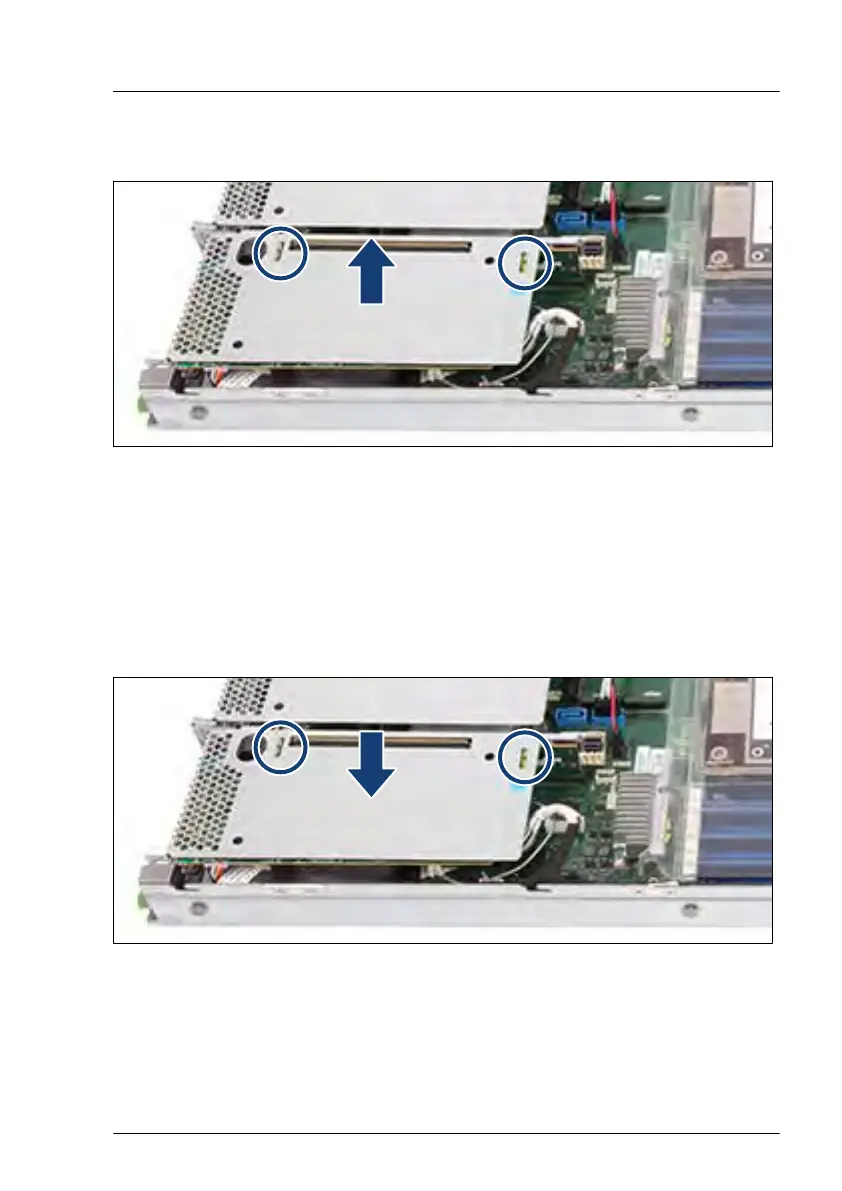

Figure 21: Removing a riser module (example riser module 1)
▶
If necessary
, disconnect the cables from the other components.
▶
Carefully pull out the corresponding riser module upward using the two
touch points (see circles).
4.10.3
Installing a riser module
Figure 22: Installing a riser module (example riser module 1)
▶
Insert the riser card into the system board slot and press down the green
touch points (see circles).
▶
If necessary, connect the cables to the other components.
Basic hardware procedures
RX2530 M6 Upgrade and Maintenance Manual 69
