Pinch the green locking clips (1) and open the locking lever (2).
▶
Pull the EDSFF SSD module completely out of its bay
.
Installing an EDSFF dummy module
CAUTION
▶
If the removed HDD/SSD module is not replaced immediately,
always replace a dummy module into the unused HDD/SSD bay to
comply with applicable EMC regulations and satisfy cooling
requirements.

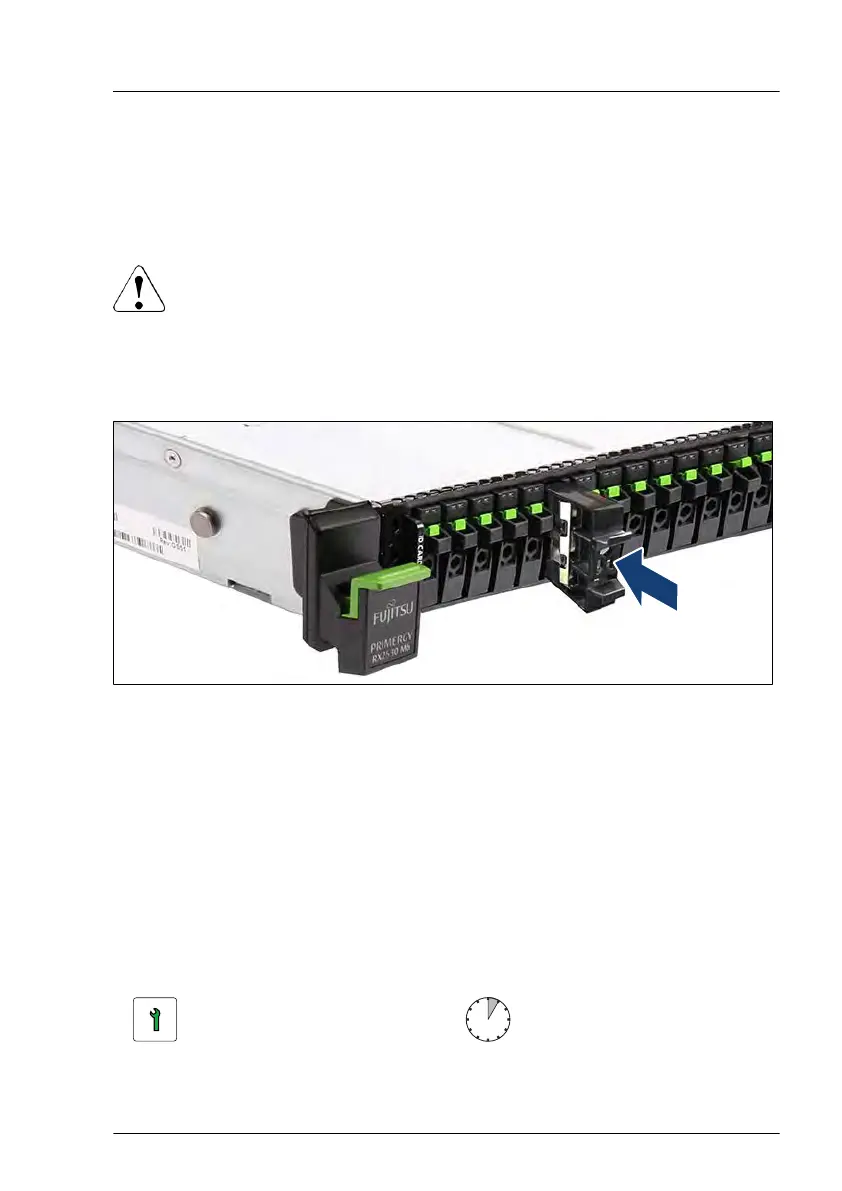

Figure 102: Installing the EDSFF dummy module
▶
Push the dummy module into the empty bay until it engages.
Concluding steps
▶
If applicable, "Switching on the server" on page
66.
▶
If applicable,
"Installing the front cover with lock" on page 66.
7.6.4 Replacing an EDSFF SSD module
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 181
