17.2.3.3 LAN indicators

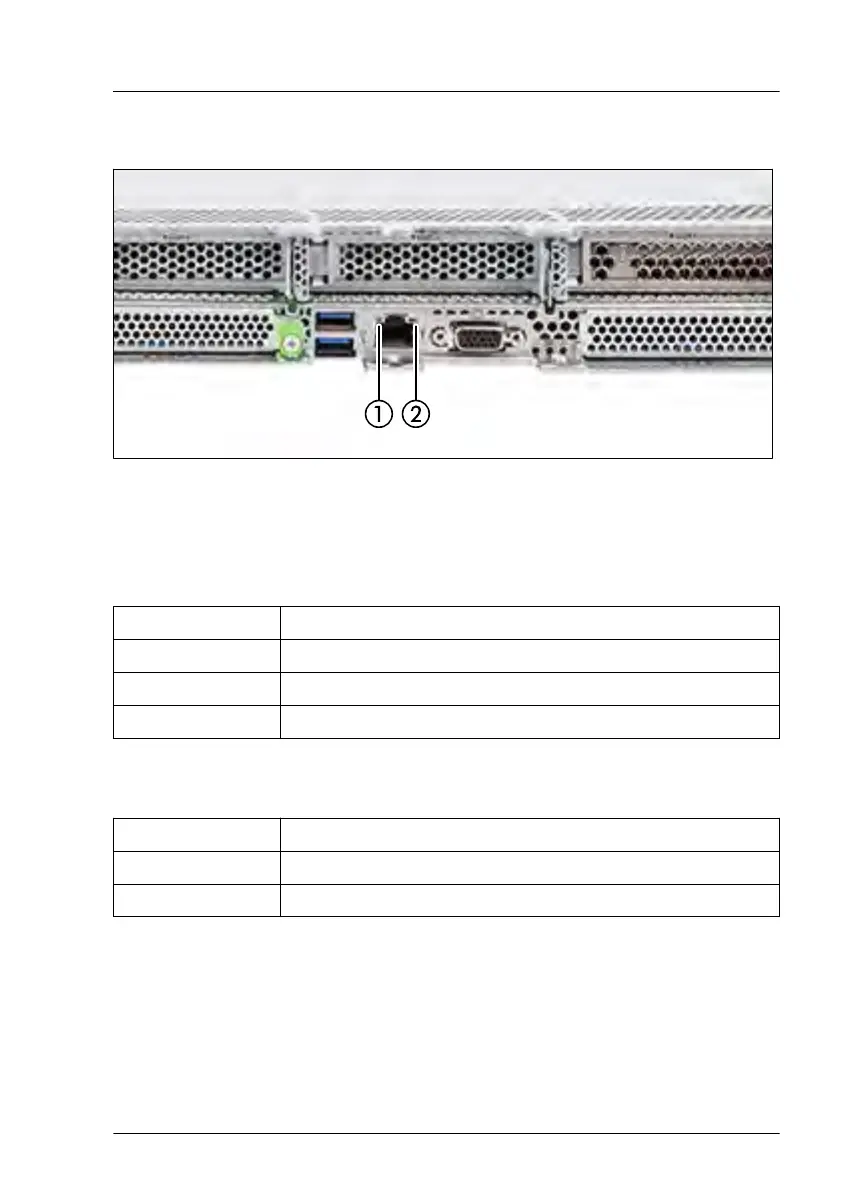

Figure 310: LAN indicators
1 LAN link/transfer 2 LAN speed
LAN link/transfer indicator (1)
Status Description
green on A LAN connection has been established.
off LAN is not connected.
flashing green LAN data transfer is in progress.
LAN speed indicator (2)
Status Description
yellow on Data traffic at a transfer rate of 1 Gbit/s.
green on Data traffic at a transfer rate of 100 Mbit/s.
Appendix A
RX2530 M6 Upgrade and Maintenance Manual 421
