Handling the air duct
4.12.1
Removing the air duct

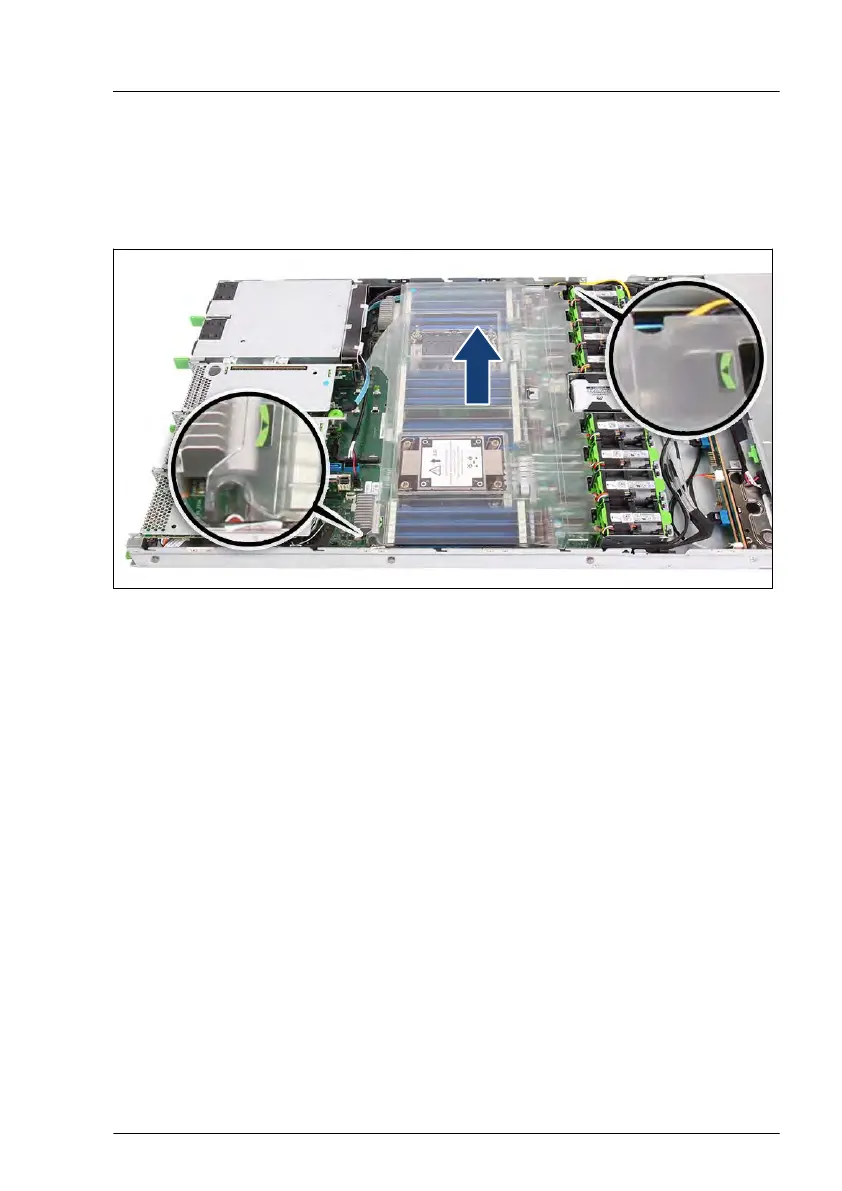

Figure 26: Removing the air duct
▶
Remove the air duct using the two green touch points (see close-ups).
Basic hardware procedures
RX2530 M6
Upgrade and Maintenance Manual
73
72
74
