16.4.3 Installing the TPM
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Phillips PH2 / (+) No. 2 screw driver (for cover 2)
– Bit screw driver
–
TPM bit insert
(*)
(*)
For Japan:
– TPM module fixing tool (S26361-F3552-L909)
Preliminary steps
▶
"Suspending BitLocker functionality" on page 75.
▶
If applicable, "Removing the front cover with lock" on page
48.
▶
"Shutting down the server" on page 48.
▶
"Disconnecting the power cord" on page 49.
▶
"Getting access to the component" on page 52.
▶
Remove the riser module 3, see "Removing a riser module" on page 69.
Installing the TPM

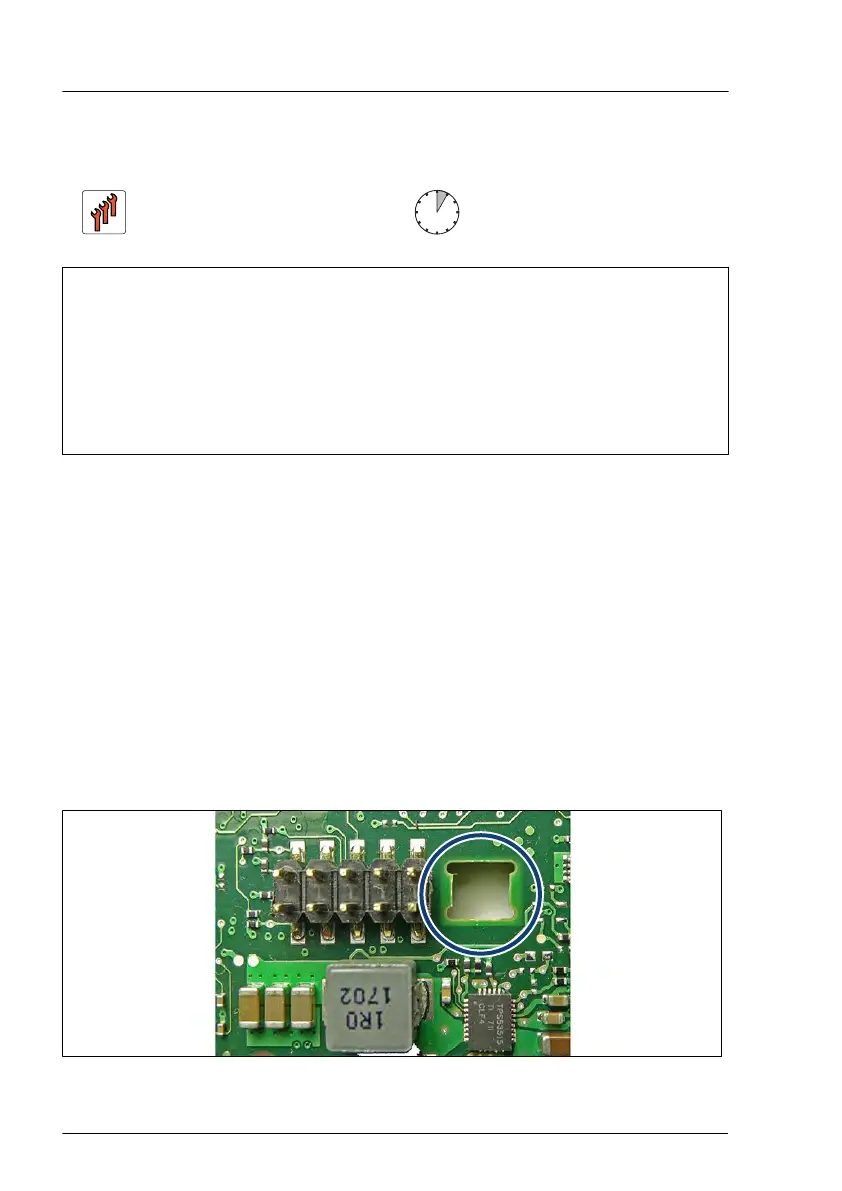

Figure 255: Position for the TPM spacer
System board and components
350 Upgrade and Maintenance Manual RX2530 M6
