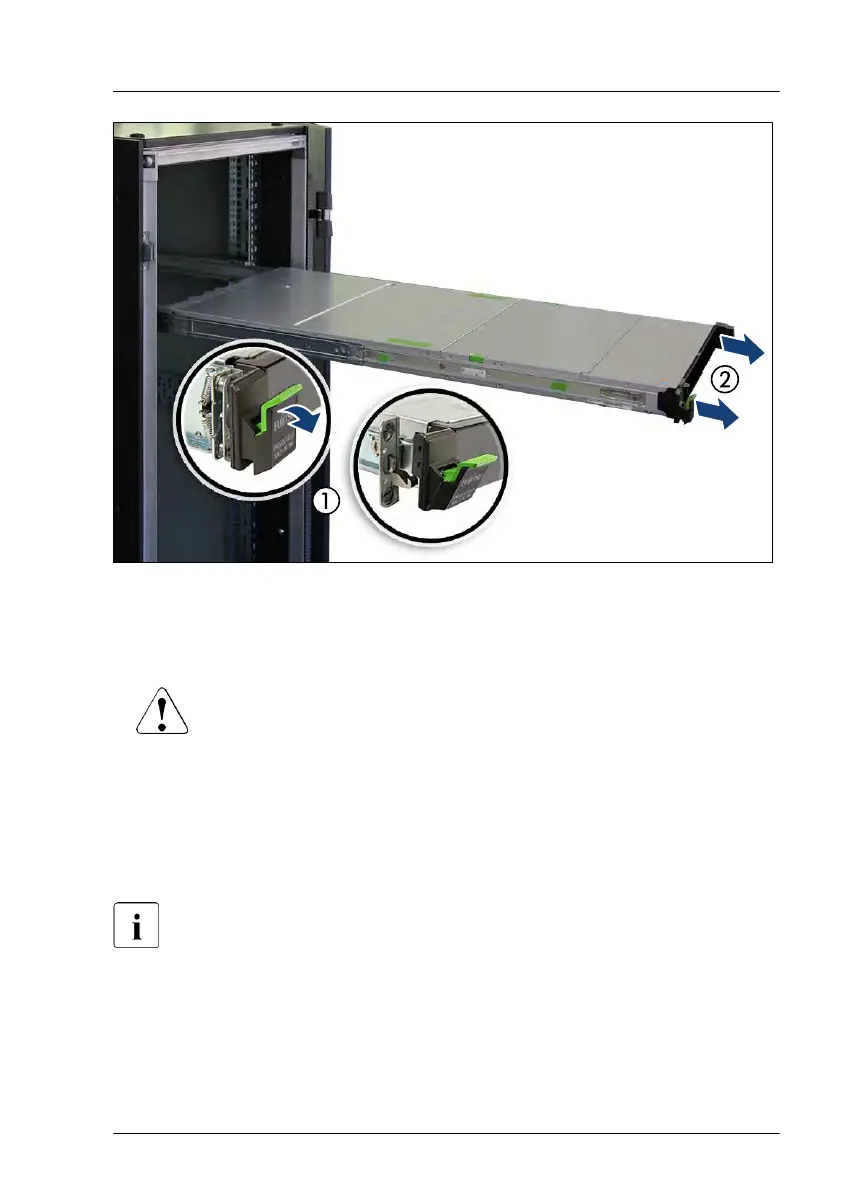

Figure 7: Extending the server out of the rack
▶
Fold down the quick release lever on the left side (1).
▶
Pull the server out of the rack until it locks in place (2).
CAUTION
▶
Do not use the extended server as a surface on which to put
things or as a work surface, and strictly avoid leaning on or
against it.
4.5.3 Removing the server from the rack
In most cases maintenance tasks can be performed while the server is
extended from the rack. However, depending on accessibility or security
guidelines, it may make sense to completely remove the server from the
rack cabinet for maintenance purposes.
Basic hardware procedures
RX2530 M6 Upgrade and Maintenance Manual 53
