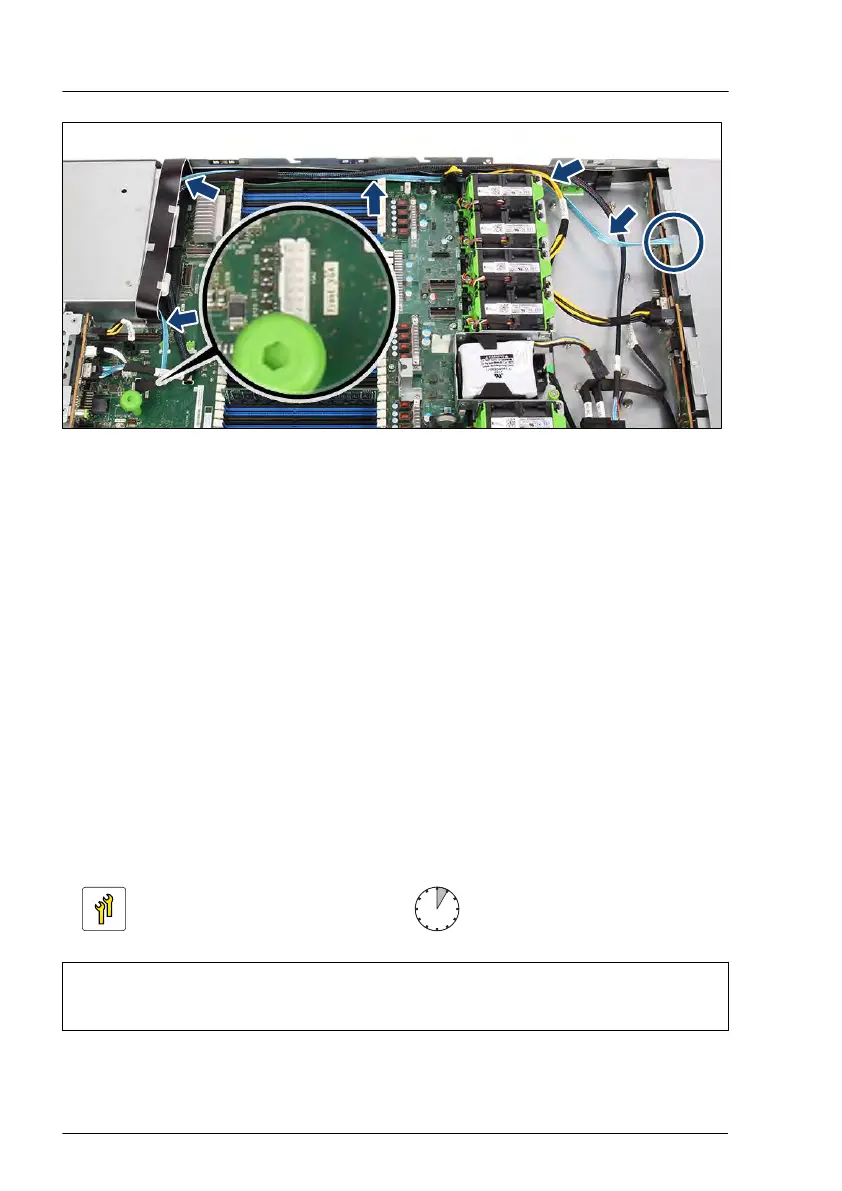

Figure 241: Installing the front VGA cable
▶
Insert the front VGA cable in the cable clip (see circle).
▶
Connect the front VGA cable to the system board connector "Front VGA".
Concluding steps
▶
"Installing the air duct" on page
74.
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page 62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
14.4.2 Removing the front VGA
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH2 / (+) No. 2 screw driver (for cover 2)
– hexagon screw driver 5 mm (for front VGA)
Front panel
332 Upgrade and Maintenance Manual RX2530 M6
