Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 48.
▶
"Shutting down the server" on page
48.
▶
"Disconnecting the power cord" on page 49.
▶
"Getting access to the component" on page 52.
▶
"Removing the air duct" on page 73.
Removing the front VGA

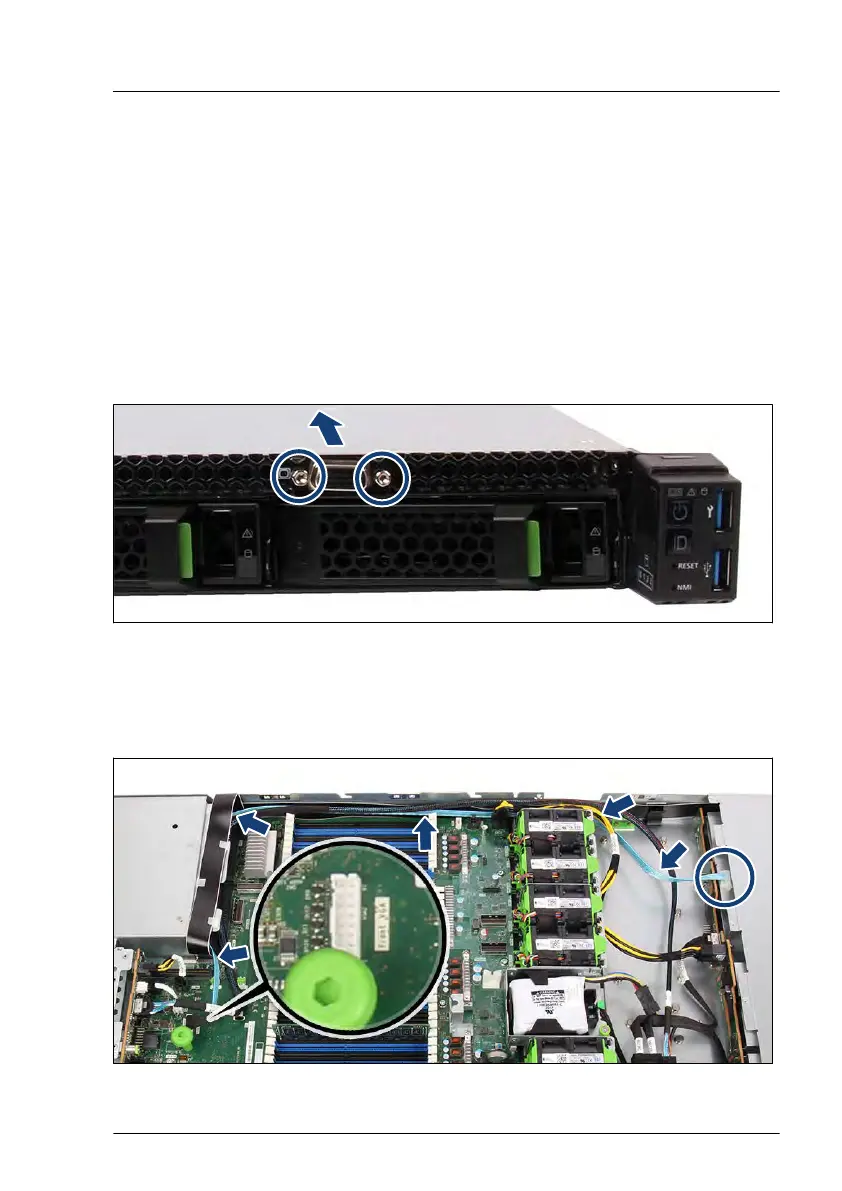

Figure 242: Removing the front VGA
▶
Remove the two screws (see circles).
▶
Pull the front VGA cable out of the opening from the inner side.
Figure 243: Removing the front VGA cable
Front panel
