Indicator Status Description
H - Memory off memory module running
orange on memory module failure
I - iRMC off iRMC S5 inactive
flashing green iRMC S5 okay
K - System fan off system fan running
orange on system fan failure
L - Battery orange on Battery failure
O - M.2 SSD orange on M.2 SSD faulty
P - LC Pump orange on LC Pump faulty
17.2.2 Server front
17.2.2.1 Connectors on the server front

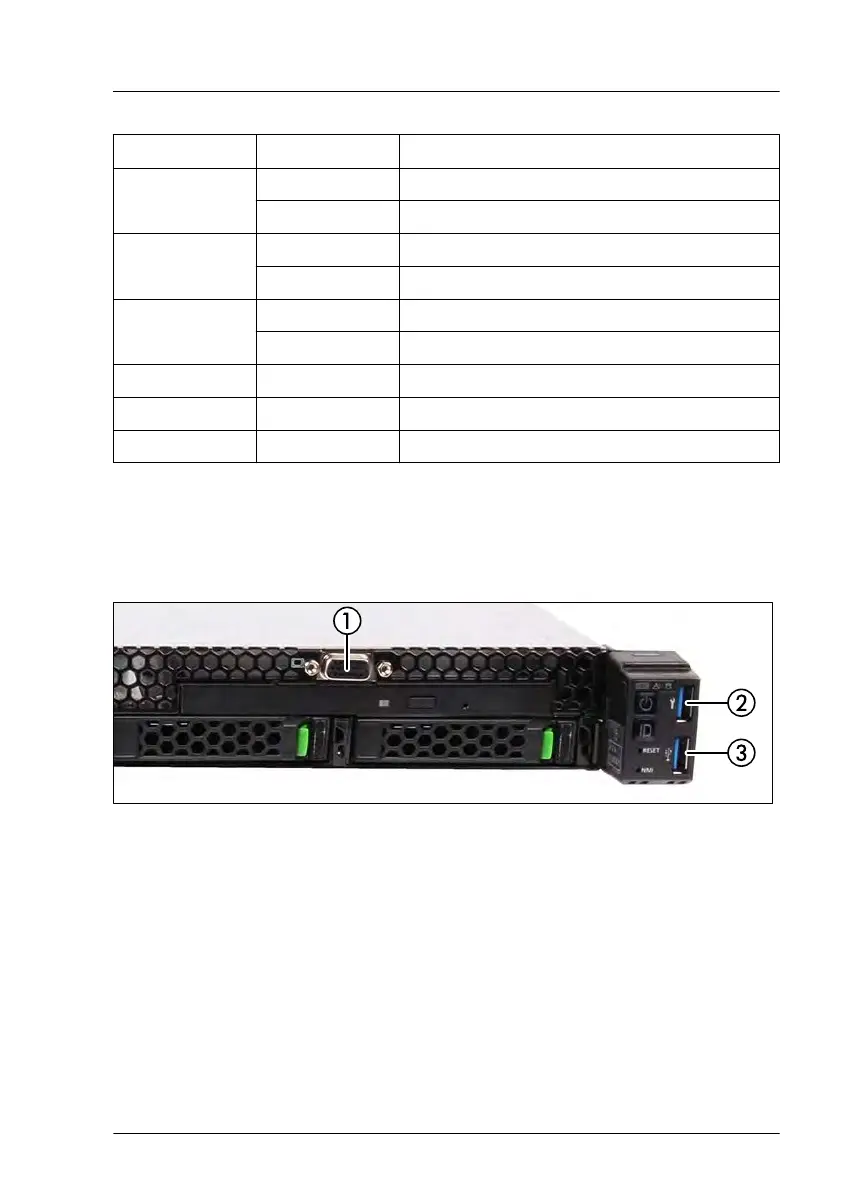

Figure 302: Connectors on the server front
1 Front VGA connector
2 USB 3.0 connector
3 USB 3.0 connector
The front VGA connector is an option in some configurations.
Appendix A
RX2530 M6 Upgrade and Maintenance Manual 411
