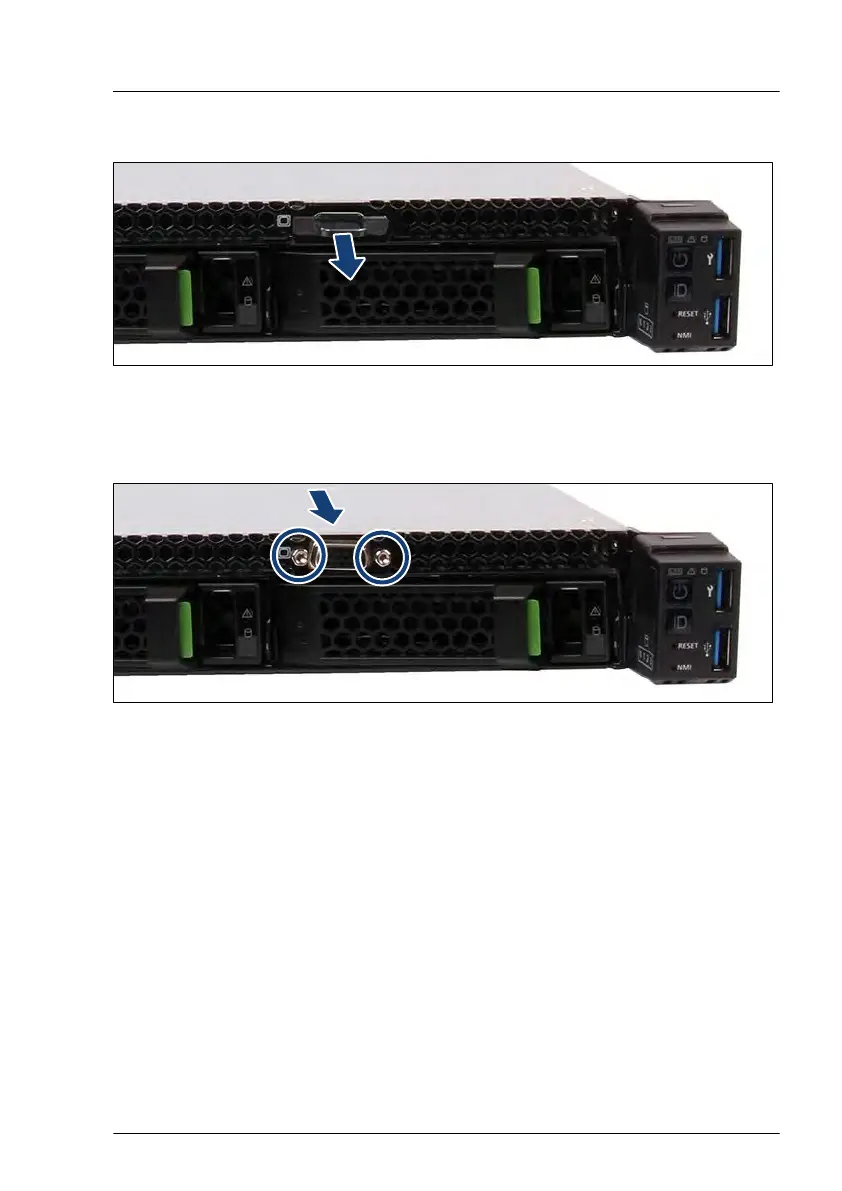

Removing the dummy cover
▶
Remove the dummy cover.
Installing the front VGA
Figure 240: Installing the front VGA
▶
Insert the front VGA cable from the server inside through the opening.
▶
Fasten the front VGA connector with the two screws (see circles).
Front panel
