Fujitsu PRIMERGY RX2530 M6 User Manual

Installing a 3.5-inch HDD module

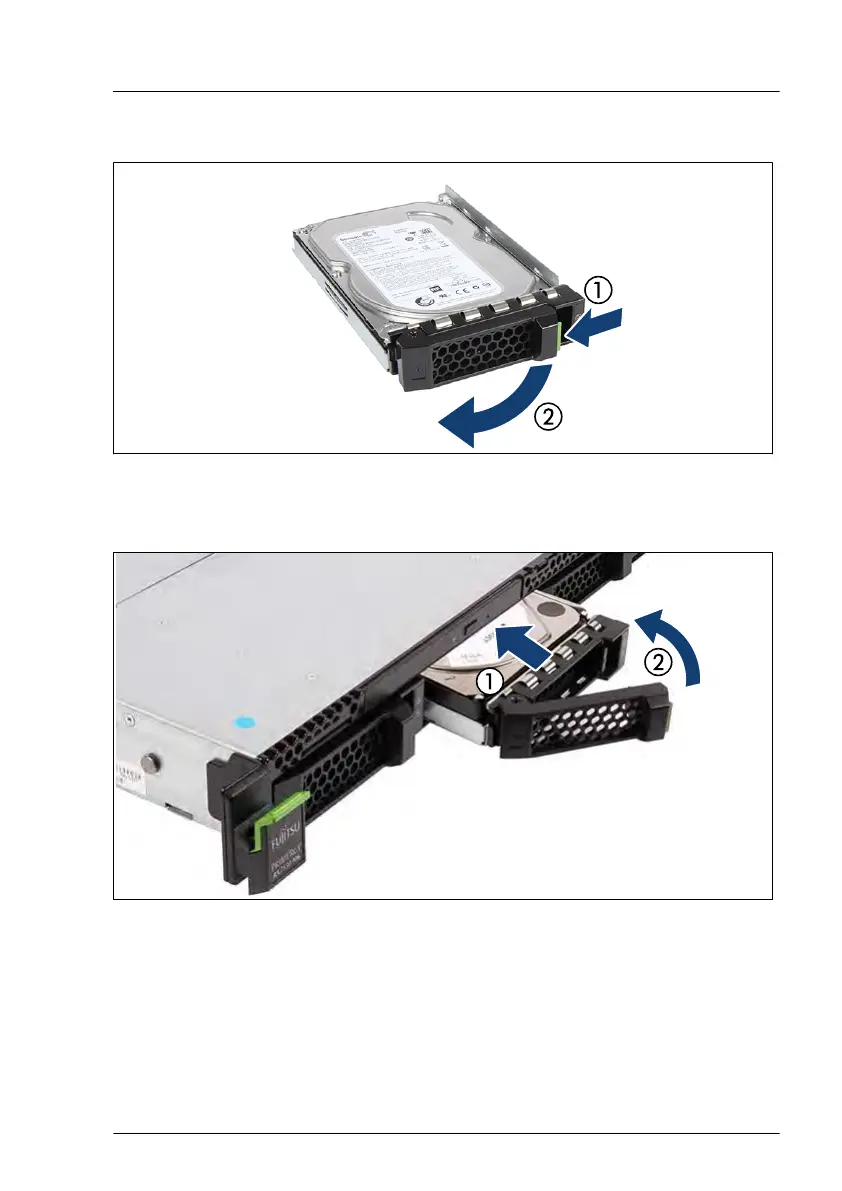

Figure 48: Opening the locking lever
▶
Pinch the green locking clip (1) and open the locking lever (2).
Figure 49: Installing the 3.5-inch HDD module
▶
Insert the HDD module into a drive bay and carefully push back as far as it
will go (1).
▶
Close the locking lever to lock the HDD module in place (2).
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 129

Fujitsu PRIMERGY RX2530 M6 Specifications

General

Form Factor	2U Rack
Chipset	Intel C621A
Processor	Intel Xeon Scalable Processors (3rd Gen)
Memory Type	DDR4
Memory Slots	16
Storage	2.5-inch or 3.5-inch SAS/SATA/NVMe drives
Drive Bays	12 x 2.5" or 3.5"
Network Controller	Intel Ethernet Controller (optional)
Expansion Slots	Up to 3 x PCIe Gen4 slots
Power Supply	Redundant hot-plug power supplies, various wattage options available
Management	Fujitsu ServerView Suite
Operating System Support	Windows Server, Linux, VMware
RAID Controller	Optional RAID controllers (LSI MegaRAID)
