Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

15RX2530 M6

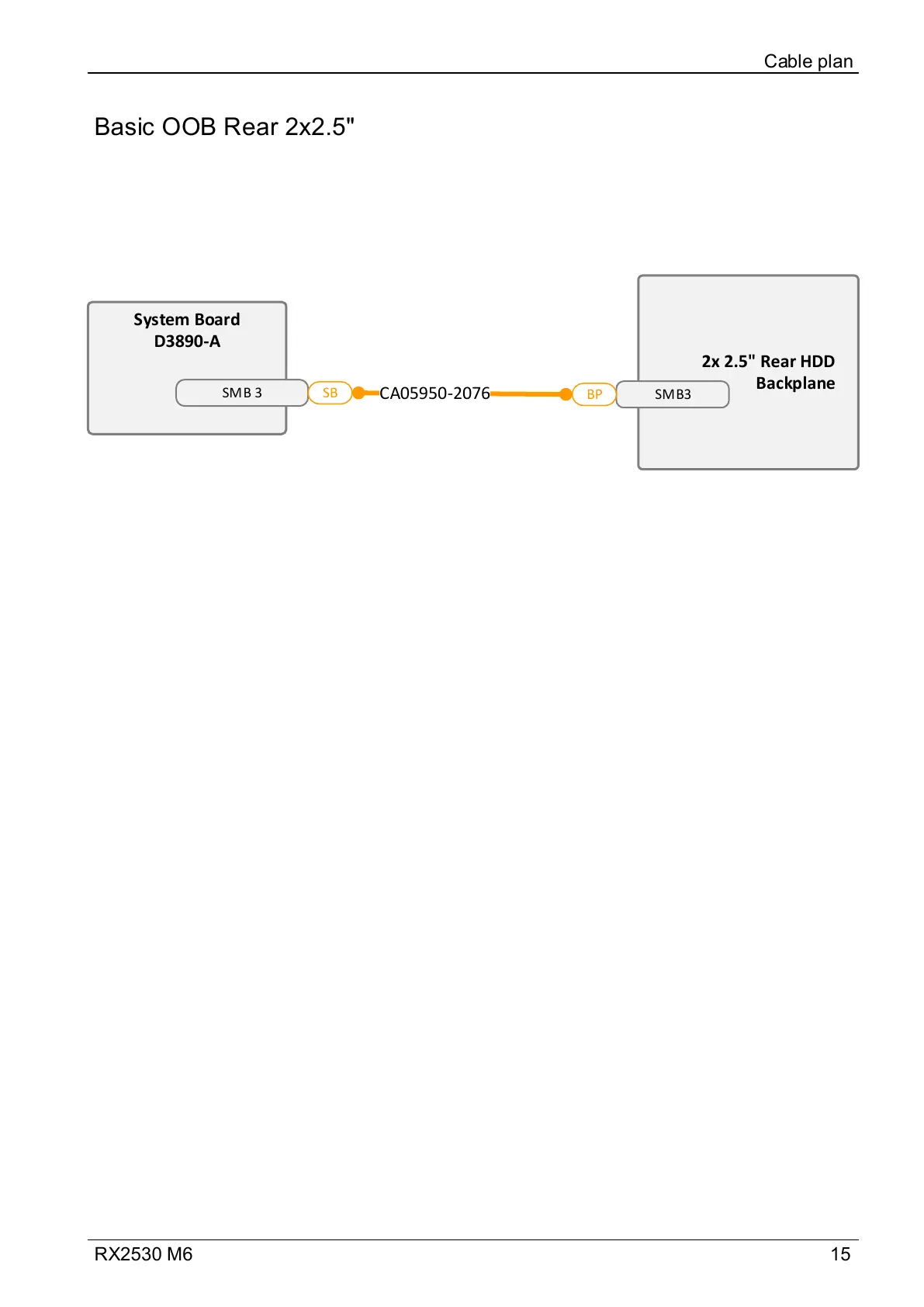

Basic OOB Rear 2x2.5"

Cable plan

System Board

D3890-A

SMB 3

2x 2.5" Rear HDD

Backplane

SMB3

CA05950-2076
