22RX2530 M6

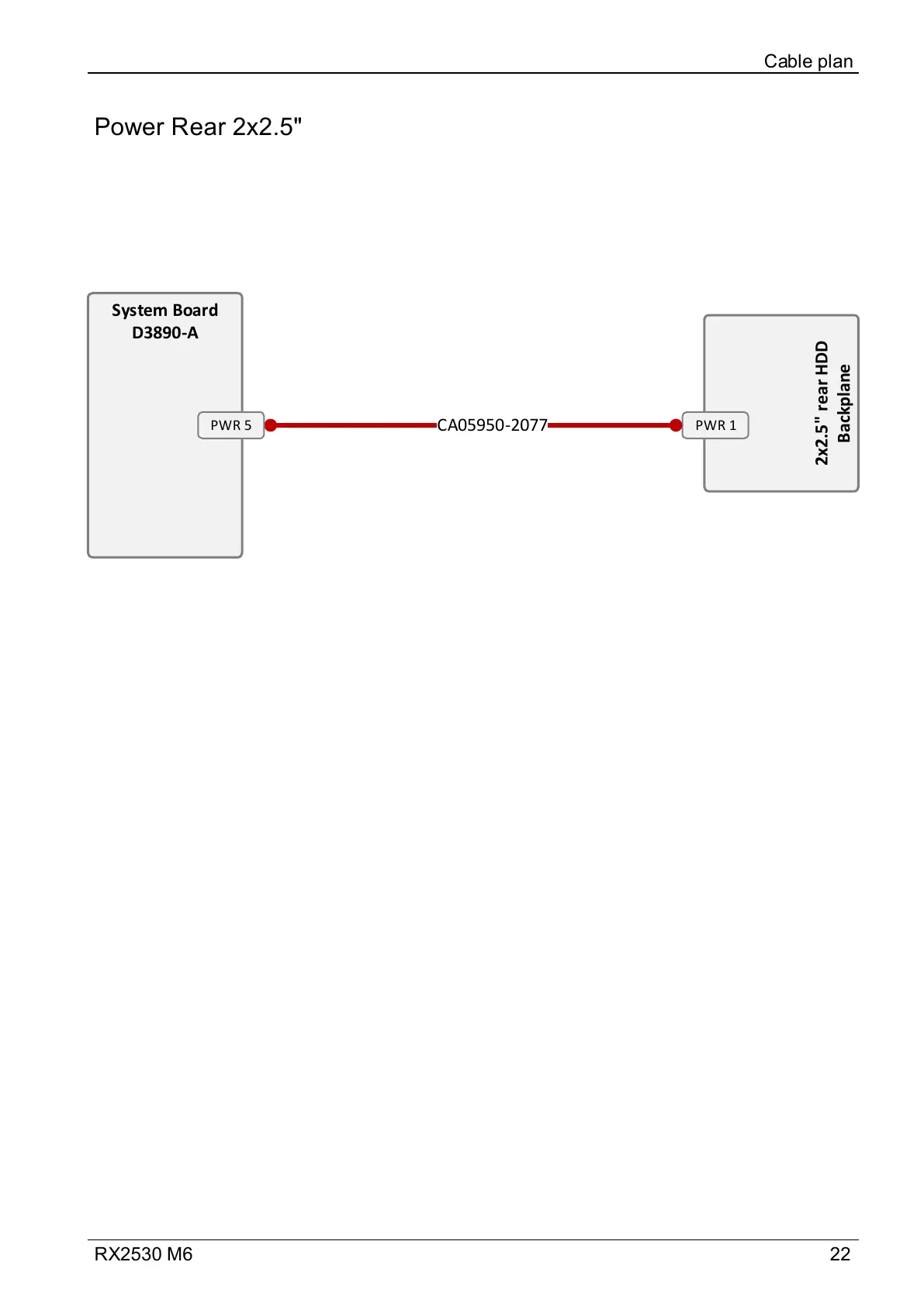

Power Rear 2x2.5"

Cable plan

System Board

D3890-A

PWR 1

2x2.5" rear HDD

Backplane

CA05950-2077

PWR 5
