27RX2530 M6

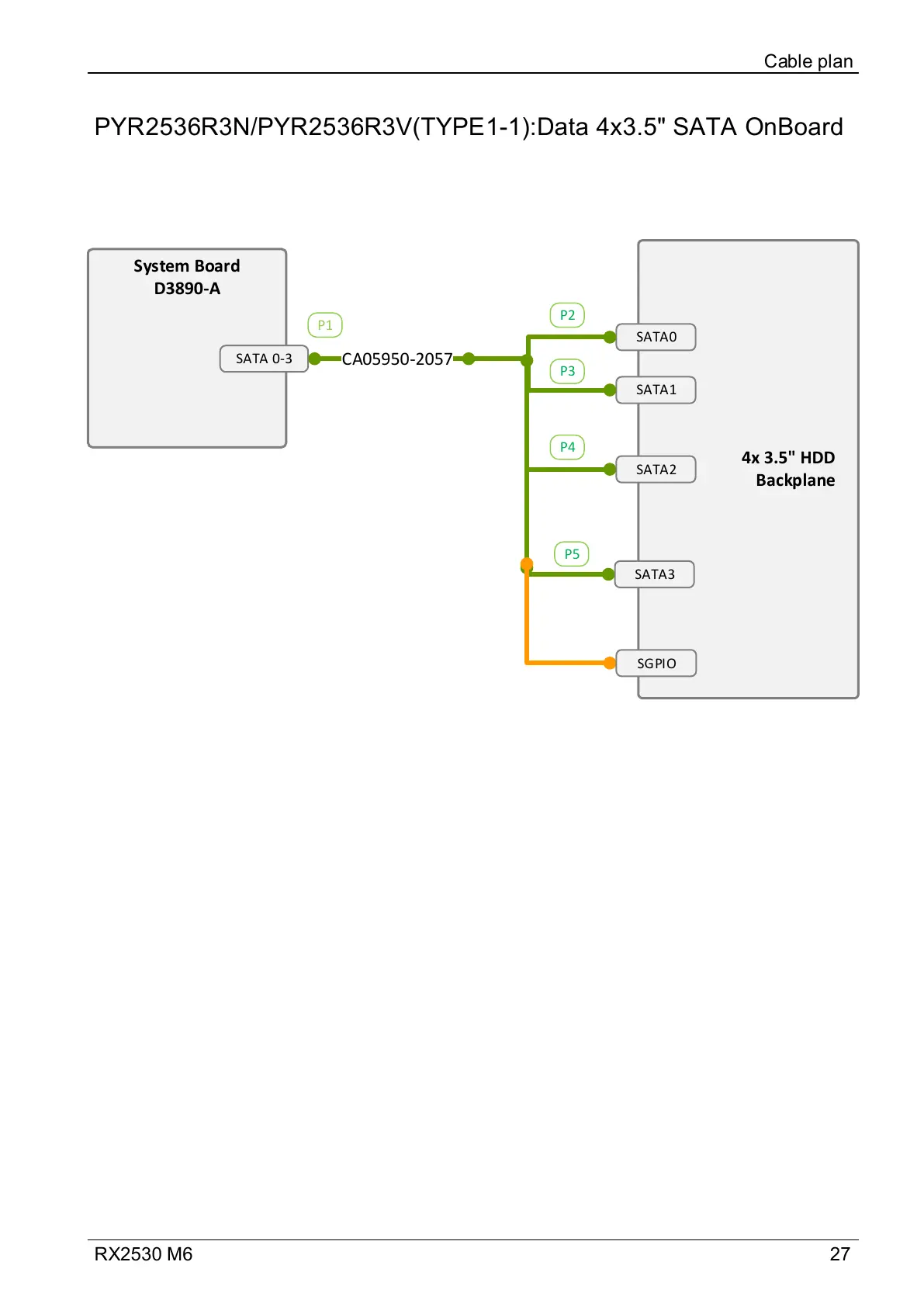

PYR2536R3N/PYR2536R3V(TYPE1-1):Data 4x3.5" SATA OnBoard

Cable plan

System Board

D3890-A

SATA 0-3

4x 3.5" HDD

Backplane

SATA0

SATA1

CA05950-2057

SATA2

SATA3

SGPIO
