Chapter 7 Page no. 720
JC-ELE-A-042.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A042 - Bar Code Scanner (Option)
6-6 Connect the Bar Code Scanner
1. Power down the AWS workstation.
Note:
Connection or disconnection of the bar code scanner USB cable while the AWS workstation is
powered on can cause damage to the bar code reader and/or the AWS workstation.
2. Connect the USB-pin male connector of the Bar Code Scanner cable to the USB connector of the
AWS workstation rear panel. See Configuration for V1/V2 Control Stations on page 717, Configura-
tion for V3 Control Stations on page 718 or Configuration for V4 Control Stations on page 719 above
for the position of the USB connector.

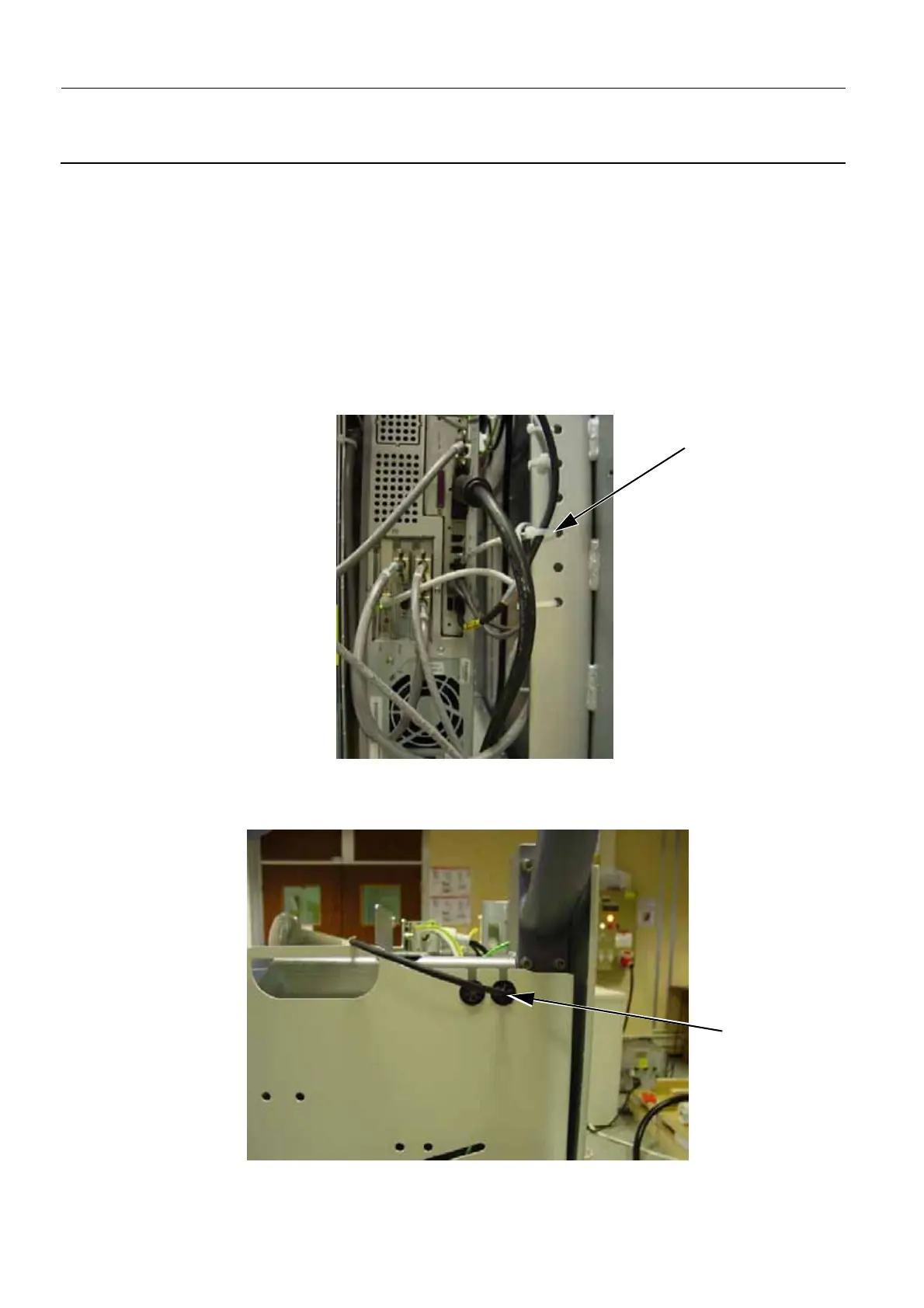

3. Route the Bar Code Scanner cable up the right side of the Control Station framework and secure it to
the framework using cable ties.
4. Place the bar code scanner on top of the Control Station. At this stage you do not put the Omega
covers back on the Control Station. The illustration below shows where you will route the cable
through the side of the Omega cover when they are re-installed.
Cable Ties
Optional
Scanner
bar code
