GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A043 - AWS Monitor Calibration
Page no. 731 Chapter 7
JC-ELE-A-043.fm
7 18" MONITORS
The table below summarizes the steps required to calibrate an 18" Monitor.
7-1 18" Monitor Keypad Usage

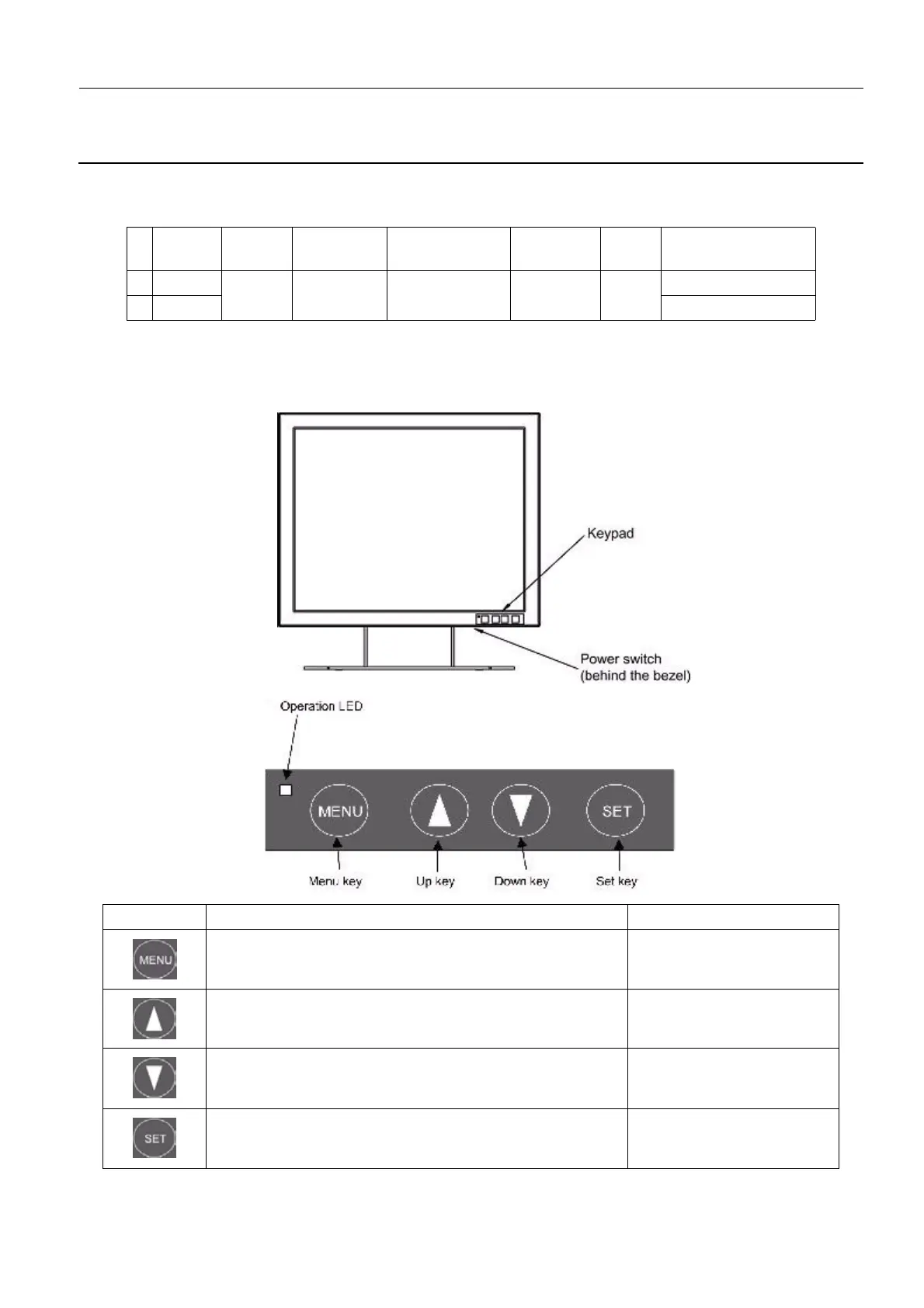

The monitor keypad at the bottom right corner of the monitor has four buttons, whose functionality is
summarized below.
Control
Station
Monitor
Keypad
Unlocking
OSD
Preliminary
Configuration
Display
SMPTE
Move
OSD
Calibration
1V3/V4 7-1 7-2 7-3 7-4 7-5 7-6-1
2V1/V2 7-6-2
Button Action Reference in this Job Card
Display main menu or select a sub-menu MENU
Enter a sub-menu or increase a value or validate changes UP
Decrease a value DOWN
Jump to upper menu or exit a menu SET
