P a g e | 119

UCM6200 Series User Manual

EXTENSIONS

Create New User

Create New SIP Extension

To manually create new SIP user, go to Web GUIExtension/TrunkExtensions. Click on "Add" and a new

dialog window will show for users to fill in the extension information.

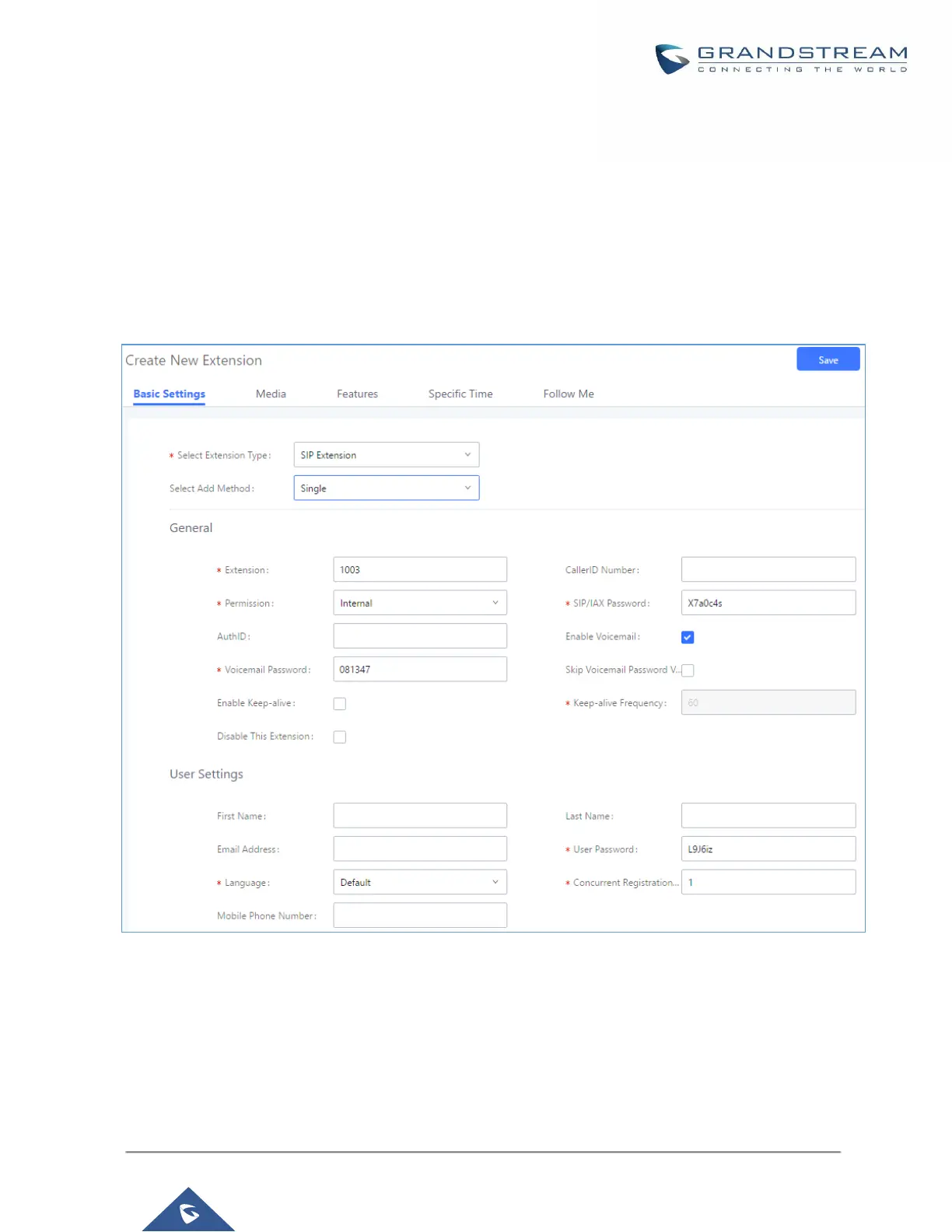

Figure 84: Create New Device

Extension options are divided into four categories:

• Basic Settings

• Media

• Features

• Specific Time

• Follow me
