P a g e | 353

UCM6200 Series User Manual

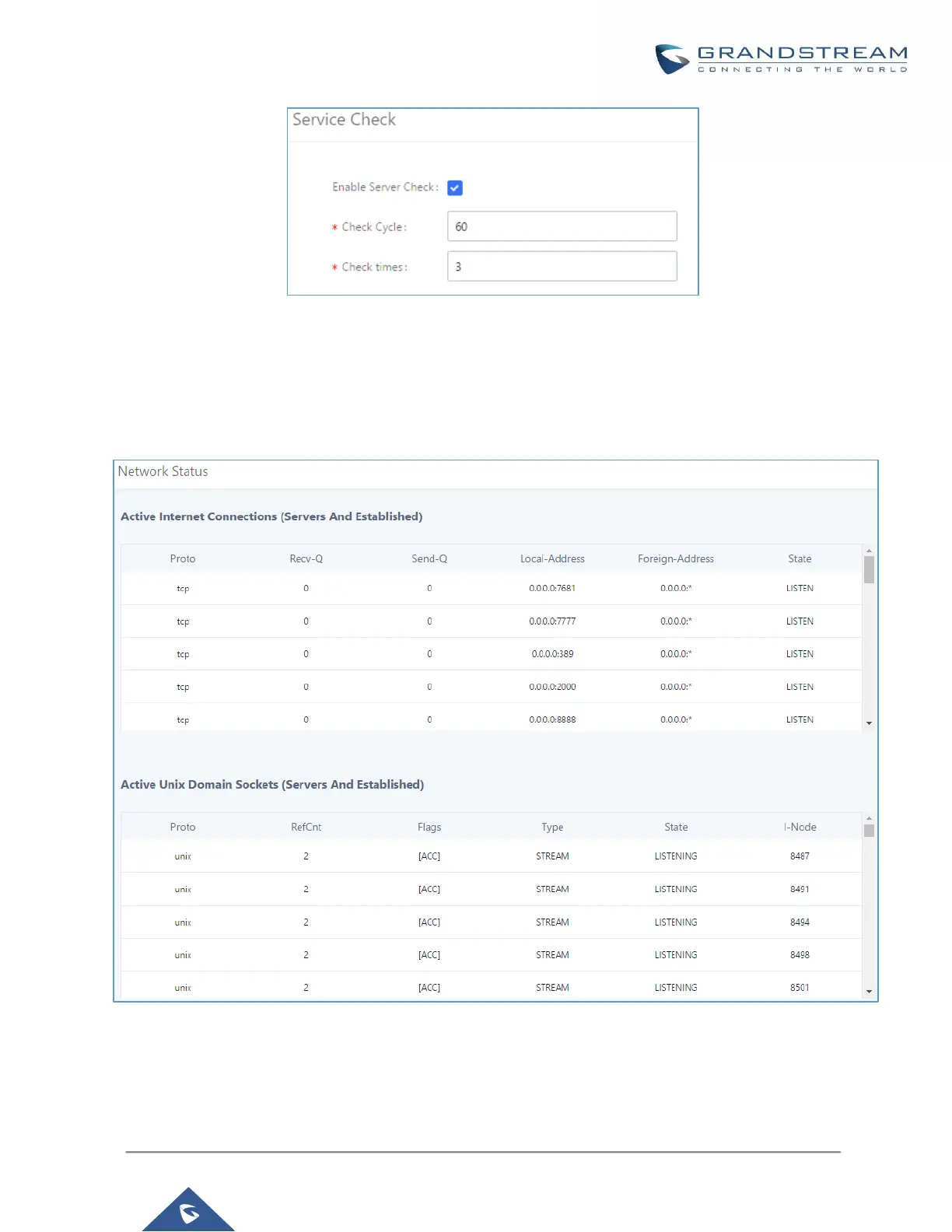

Figure 262: Service Check

Network Status

In UCM6200 Web GUISystem StatusNetwork Status, the users can view active Internet connections. This

information can be used to troubleshoot connection issue between UCM6200 and other services.

Figure 263: Network Status
