UCM6200 Series User Manual
Gateway
Configure the gateway address so that the UCM6200 can reach the destination
via this gateway. Gateway address is optional.
Example:
192.168.40.5
Interface
Specify the network interface on the UCM6200 to reach the destination using the
static route.
LAN interface is eth0; WAN interface is eth1.
Static routes configuration can be reset from LCD menuNetwork Menu.

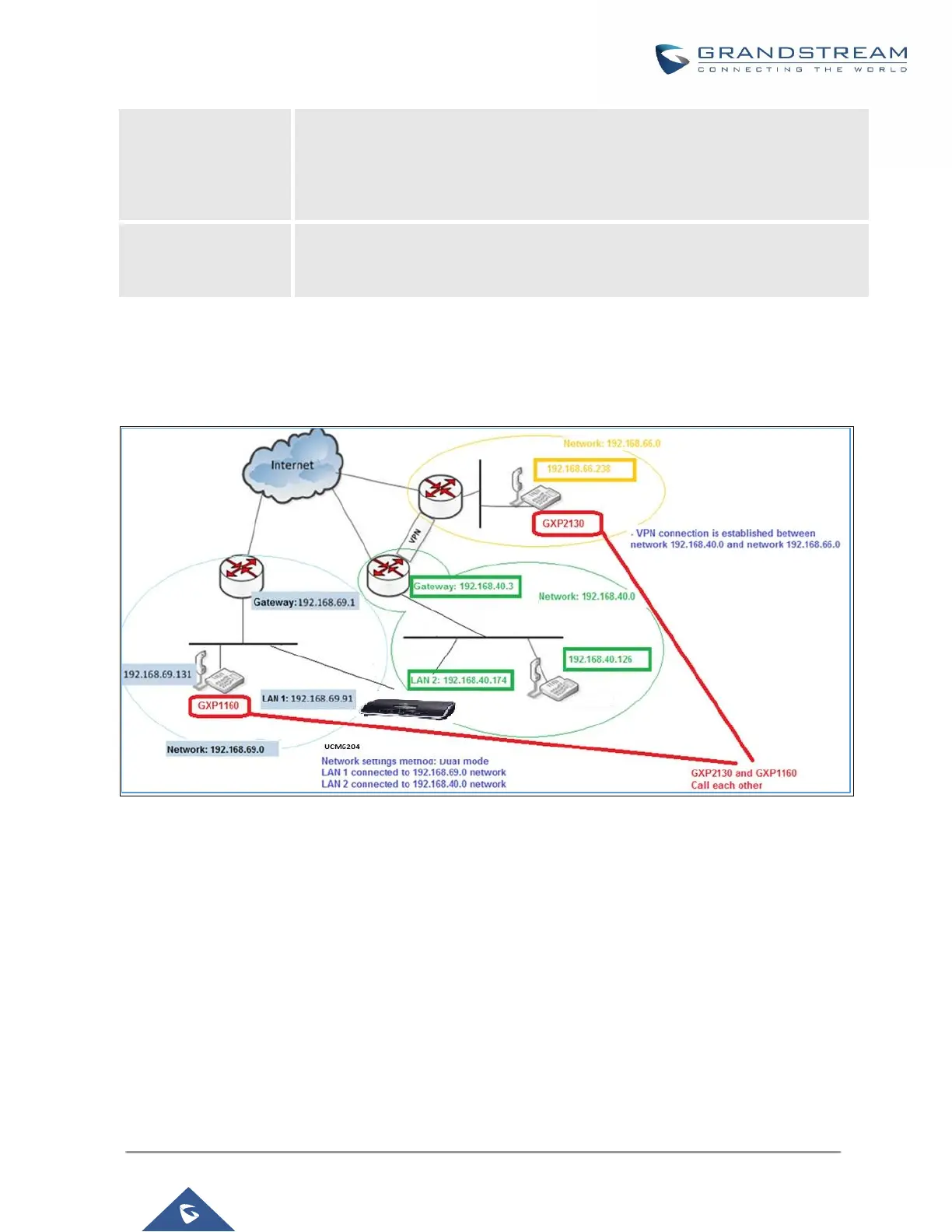

The following diagram shows a sample application of static route usage on UCM6204.
Figure 19: UCM6204 Static Route Sample
The network topology of the above diagram is as below:
• Network 192.168.69.0 has IP phones registered to UCM6204 LAN 1 address
• Network 192.168.40.0 has IP phones registered to UCM6204 LAN 2 address
• Network 192.168.66.0 has IP phones registered to UCM6204 via VPN
• Network 192.168.40.0 has VPN connection established with network 192.168.66.0
