UCM6200 Series User Manual

Multiple Registrations per Extension

UCM6200 supports multiple registrations per extension so that users can use the same extension on devices in

different locations.

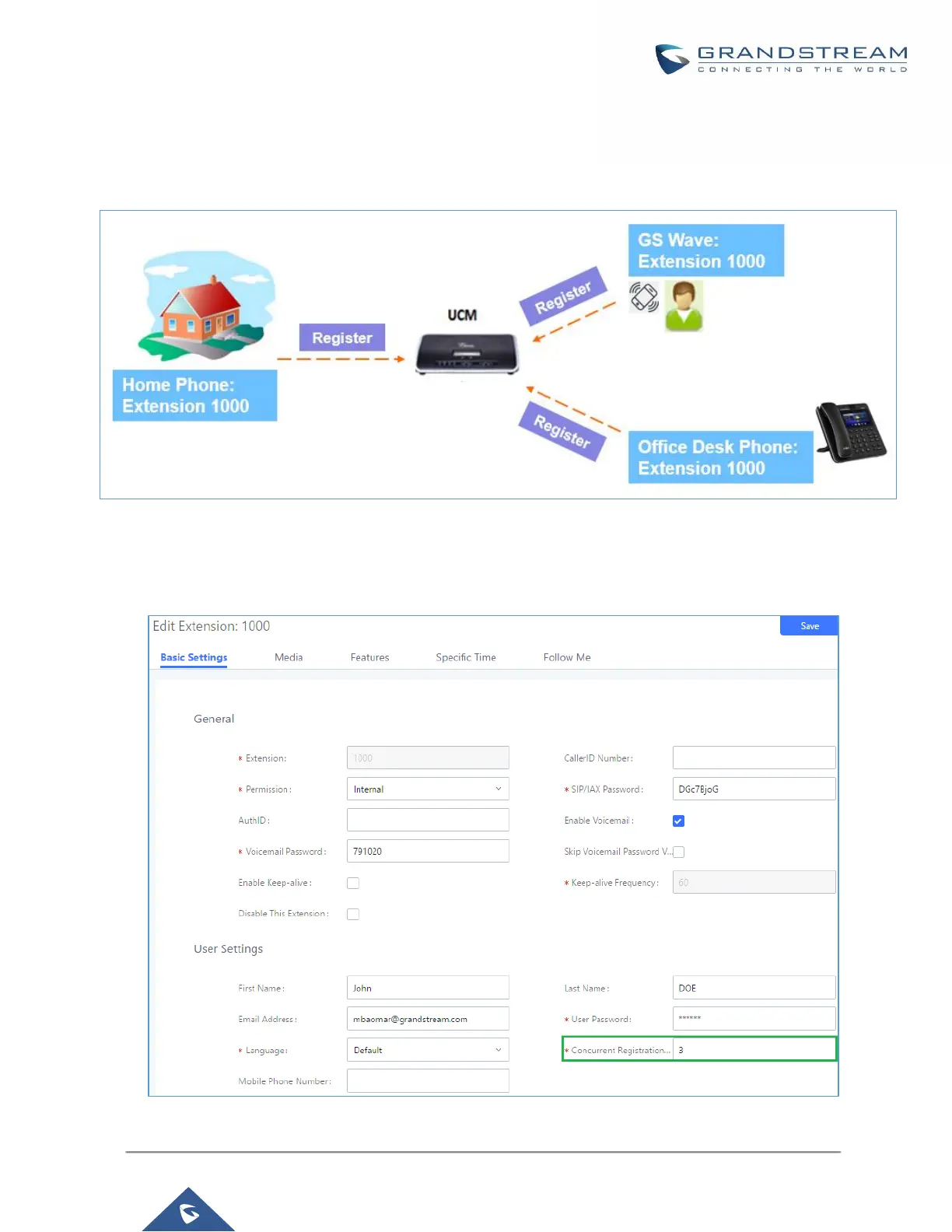

Figure 93: Multiple Registrations per Extension

This feature can be enabled by configuring option “Concurrent Registrations” under Web

GUIExtension/TrunkEdit Extension. The default value is set to 1 for security purpose. Maximum is 10.

Figure 94: Extension - Concurrent Registration
