• Export phonebook to your computer from UCM6200 LDAP server
Select the checkbox for the LDAP phonebook and then click on “Export Selected Phonebook” to export the
selected phonebook. The exported phonebook can be used as a record or a sample CSV file for the users to
add more contacts in it and import to the UCM6200 again.

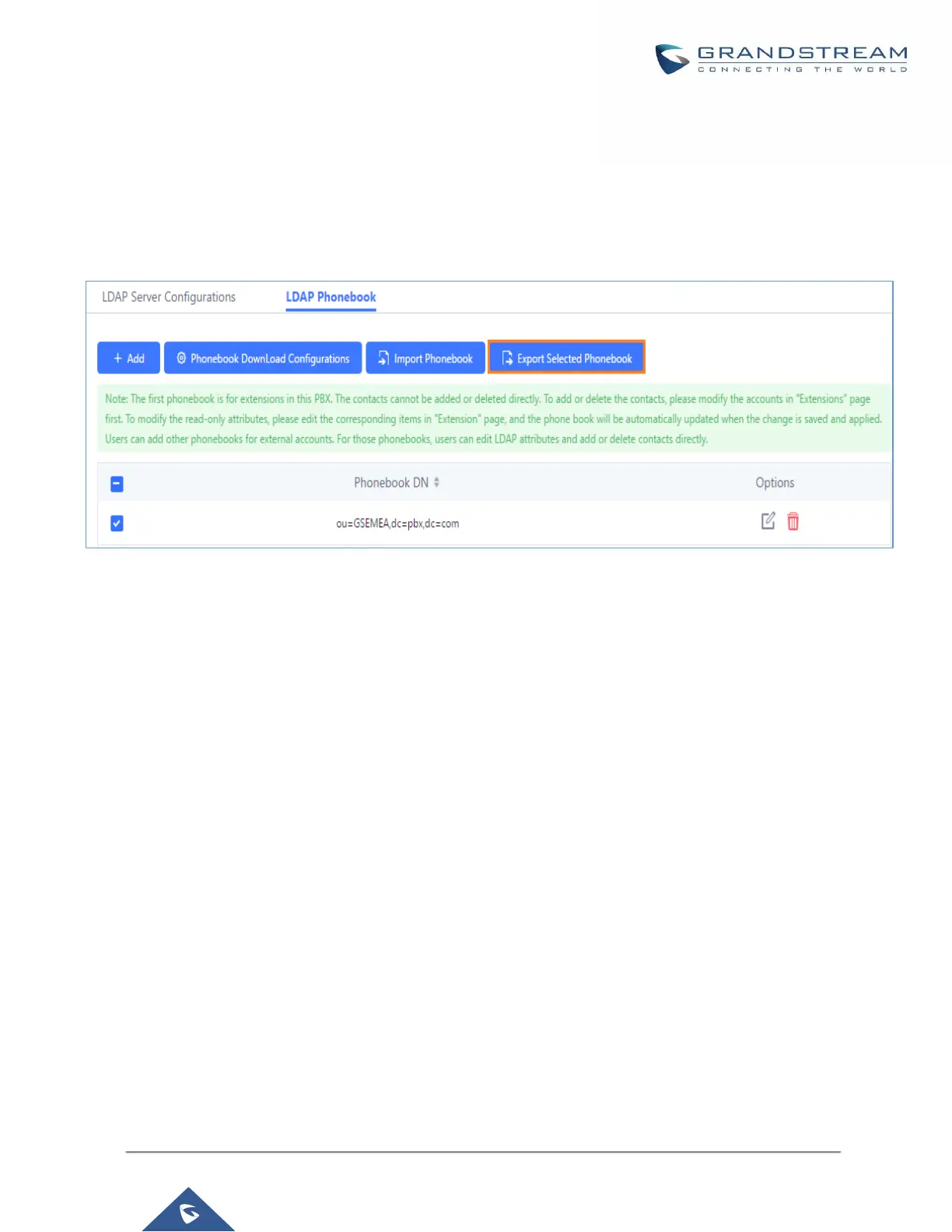

Figure 41: Export Selected LDAP Phonebook
LDAP Client Configurations
The configuration on LDAP client is similar when you use other LDAP servers. Here we provide an example on
how to configure the LDAP client on the SIP end points to use the default PBX phonebook.
Assuming the server base dn is "dc=pbx,dc=com", configure the LDAP clients as follows (case insensitive):
Server Address: LDAP server IP address
Base DN: dc=pbx,dc=com
User Name: cn= “LDAP server login name”, dc=pbx, dc=com [matching LDAP server format]
Password: “LDAP server login password”
Filter: (|(CallerIDName=%)(AccountNumber=%))
Port: 389
The following figure gives a sample configuration for UCM6200 acting as a LDAP client.
