P a g e | 181

UCM6200 Series User Manual

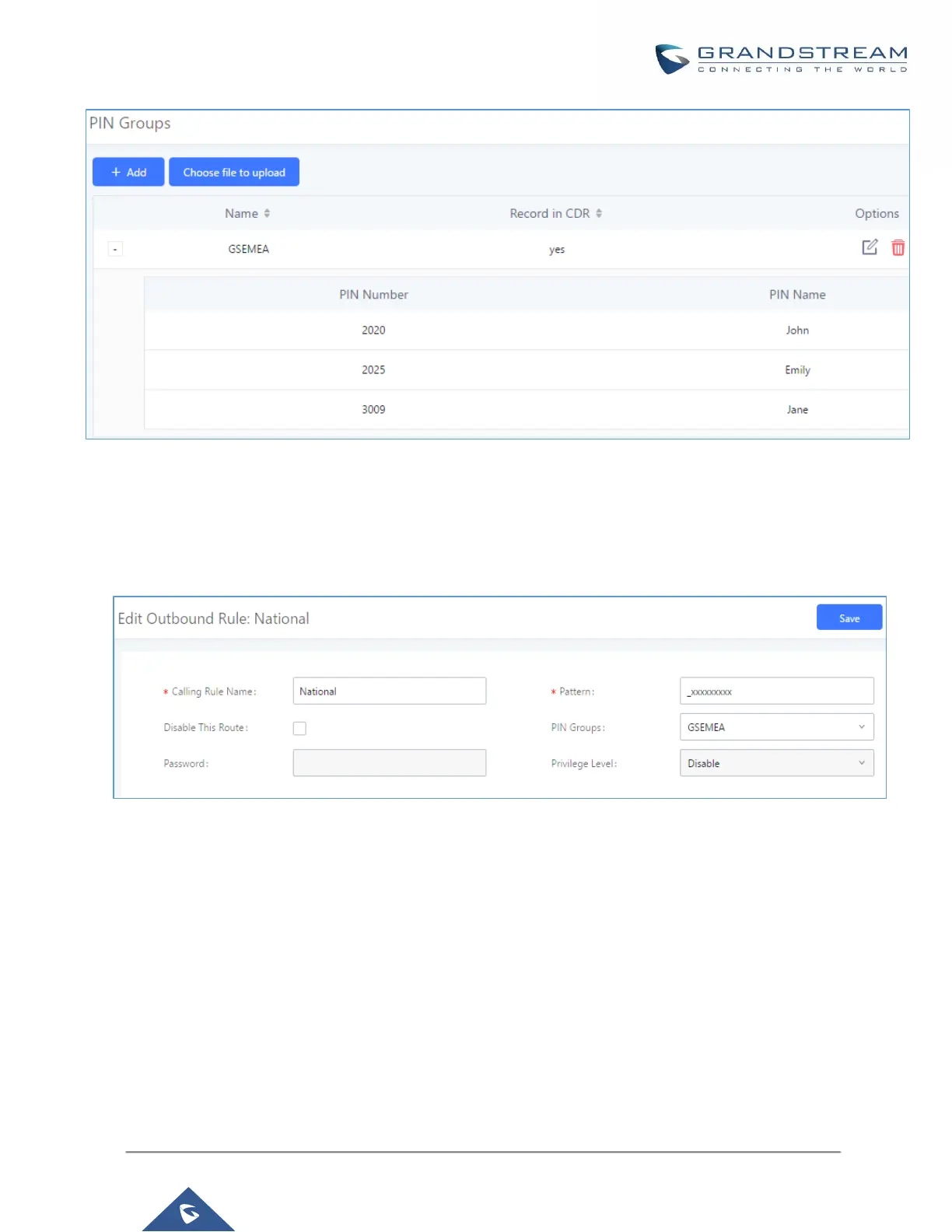

Figure 111: PIN Members

Note:

If PIN group is enabled on outbound route level, password, privilege level and enable filter on source caller ID

will be disabled.

Figure 112: Outbound PIN

If pin group CDR is enabled, the call with PIN group information will be displayed as part of CDR under Account

Code field.
