P a g e | 62

UCM6200 Series User Manual

Fail2ban

Fail2Ban feature on the UCM6200 provides intrusion detection and prevention for authentication errors in SIP

will act to forbid the host for certain period as defined in "Banned Duration". This feature helps prevent SIP brute

force attacks to the PBX system.

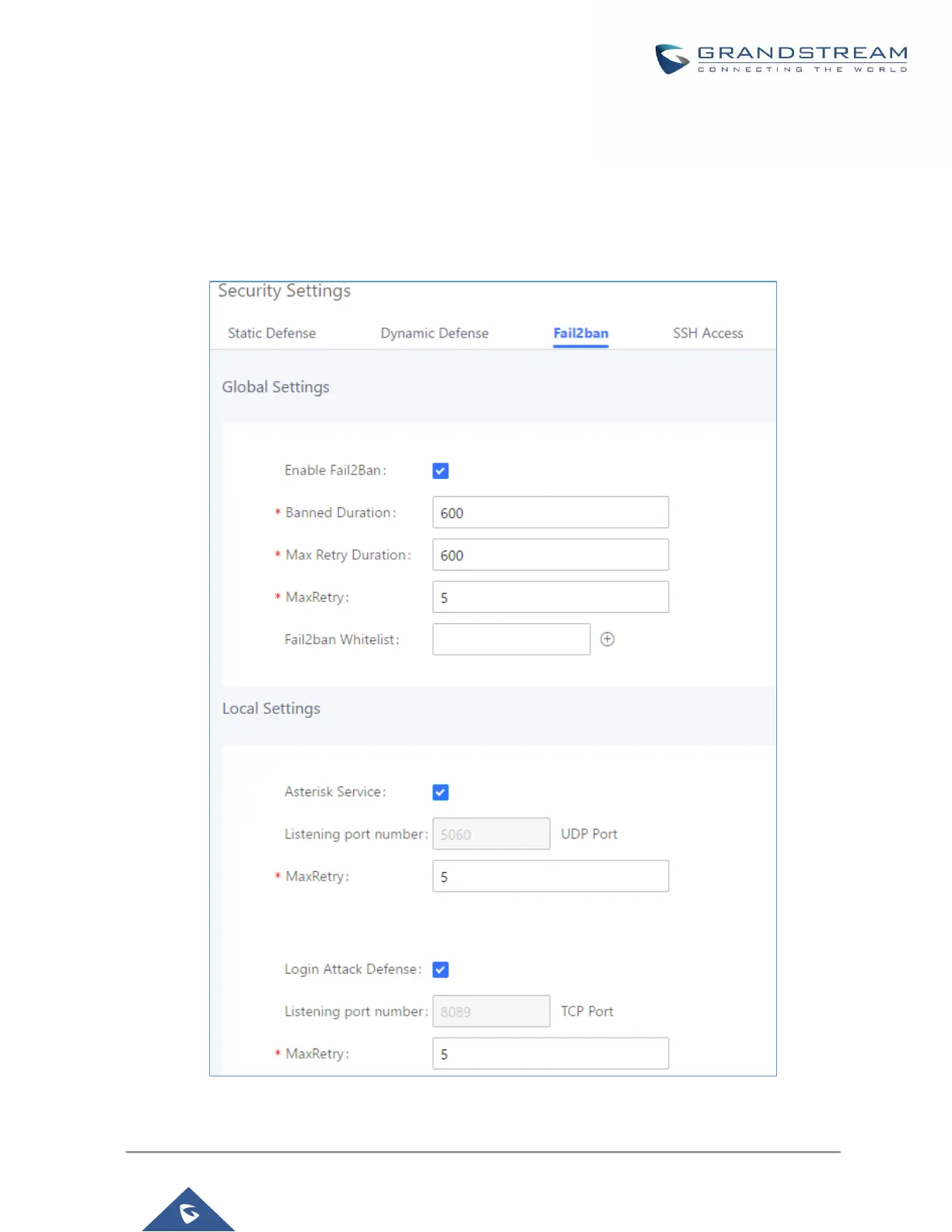

Figure 30: Fail2ban Settings
