P a g e | 150

UCM6200 Series User Manual

The user will receive Email including account registration information and LDAP configuration. A QR code is also

generated for Mobile applications to scan it and get automatically provisioned. QR code provisioning is supported

on Grandstream Softphone GS Wave Android

application and iOS application.

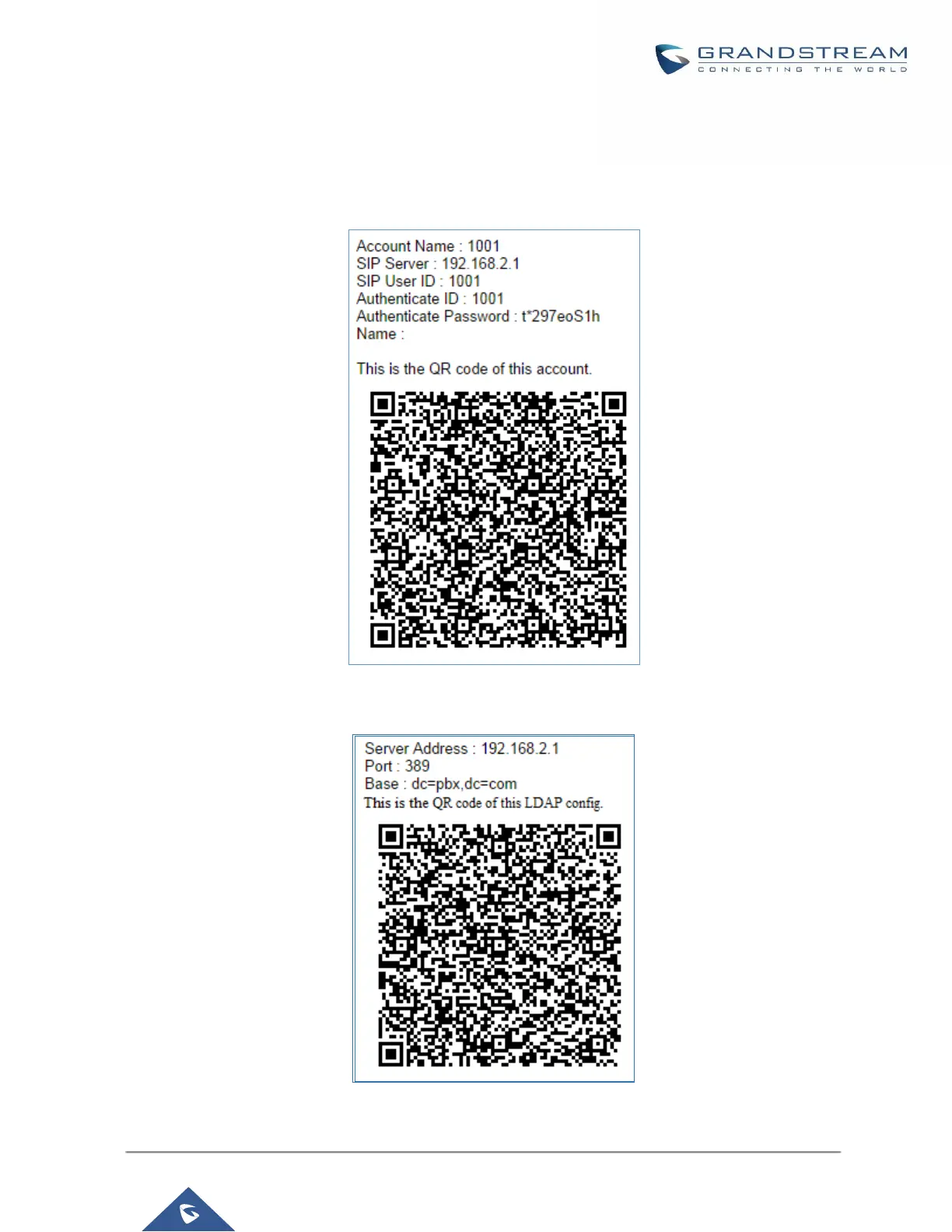

Figure 91: Account Registration Information and QR Code

Figure 92: LDAP Client Information and QR Code
