P a g e | 217

UCM6200 Series User Manual

Password must match for UCM6200_A and UCM6200_B to sync LDAP contact automatically. Port number

can be anything between 0~65535, and use the outbound rule created in step 1 for the LDAP Outbound

Rule option.

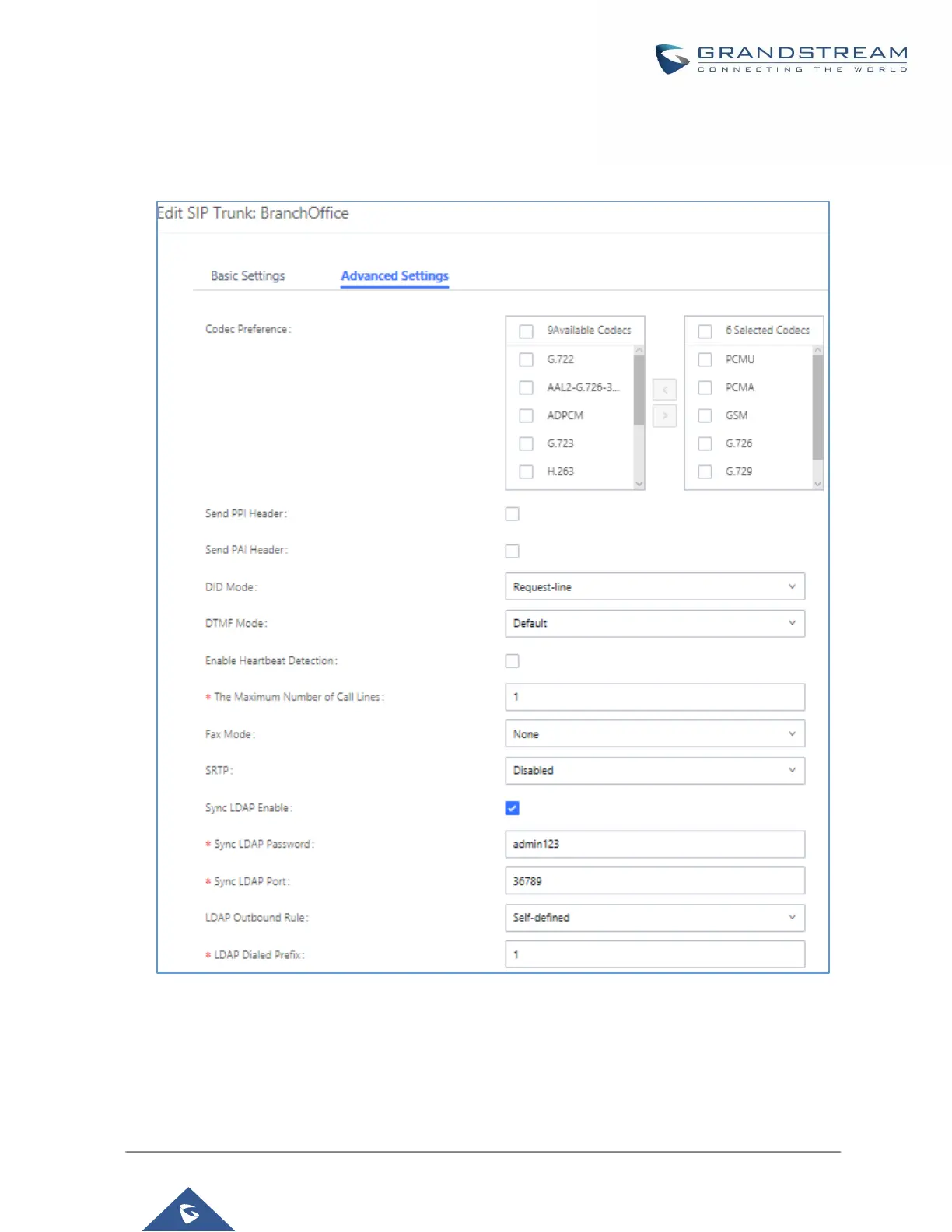

Figure 137: Sync LDAP Server option

3. In case if LDAP server doesn’t sync automatically, user can manually sync LDAP server. Under VoIP Trunks

page, click sync button shown in the following figure to manually sync LDAP contacts from peer UCM6200.
