UCM6200 Series User Manual

ANNOUNCEMENTS CENTER

The UCM6200 supports Announcements Center feature which allows users to pre-record and store voice

message into UCM6200 with a specified code. The users can also create group with specified extensions. When

the code and the group number are dialed together in the combination of code + group number, the specified

voice message is sent to all group members and only extensions in the group will hear the voice message.

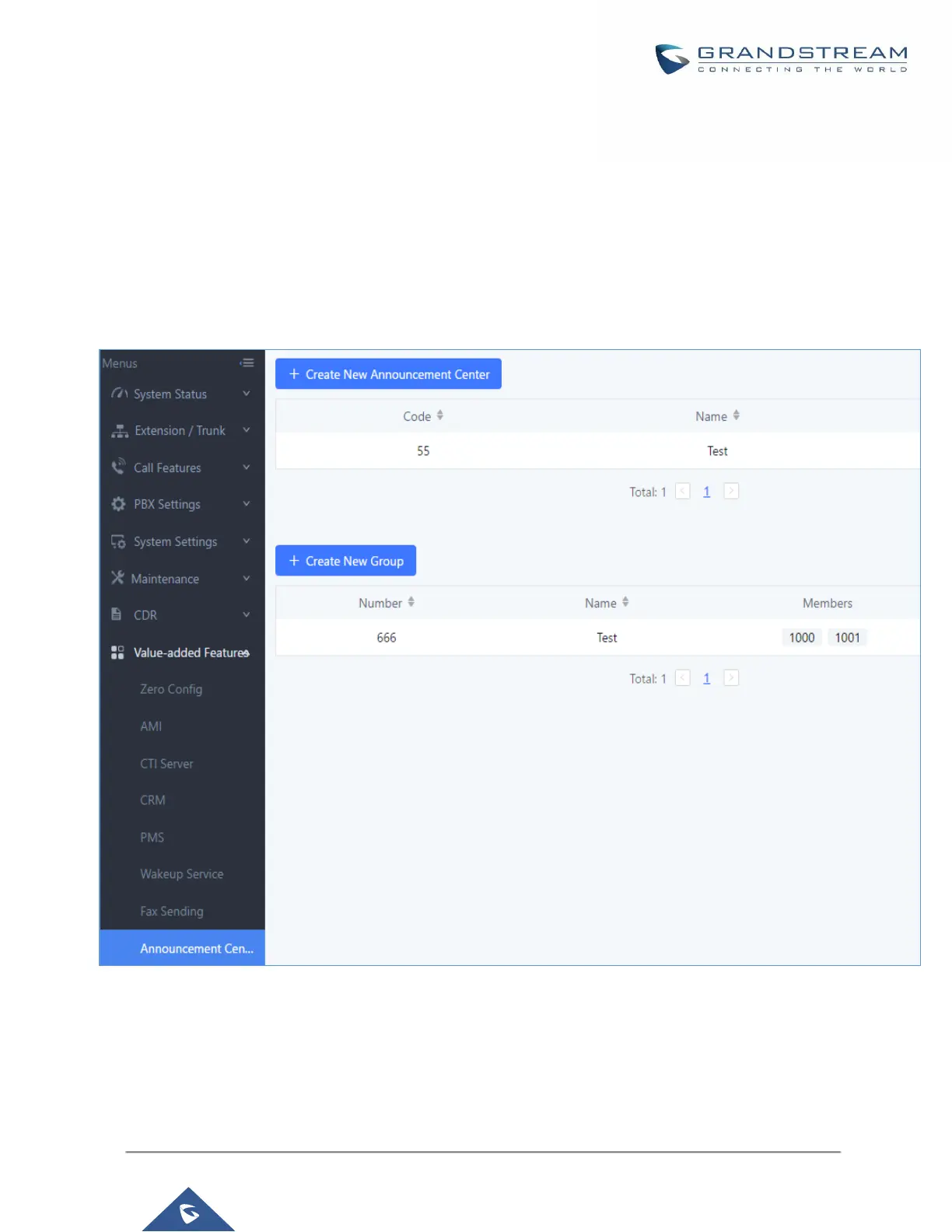

Figure 203: Announcements Center
