Setup Wizard
When the user logs in the UCM6200 Web GUI for the first time, a setup wizard will guide the user to set up basic
configuration. Configurations in setup wizard includes: Time zone, Change password, Network settings,
Extensions, Trunk and routes.

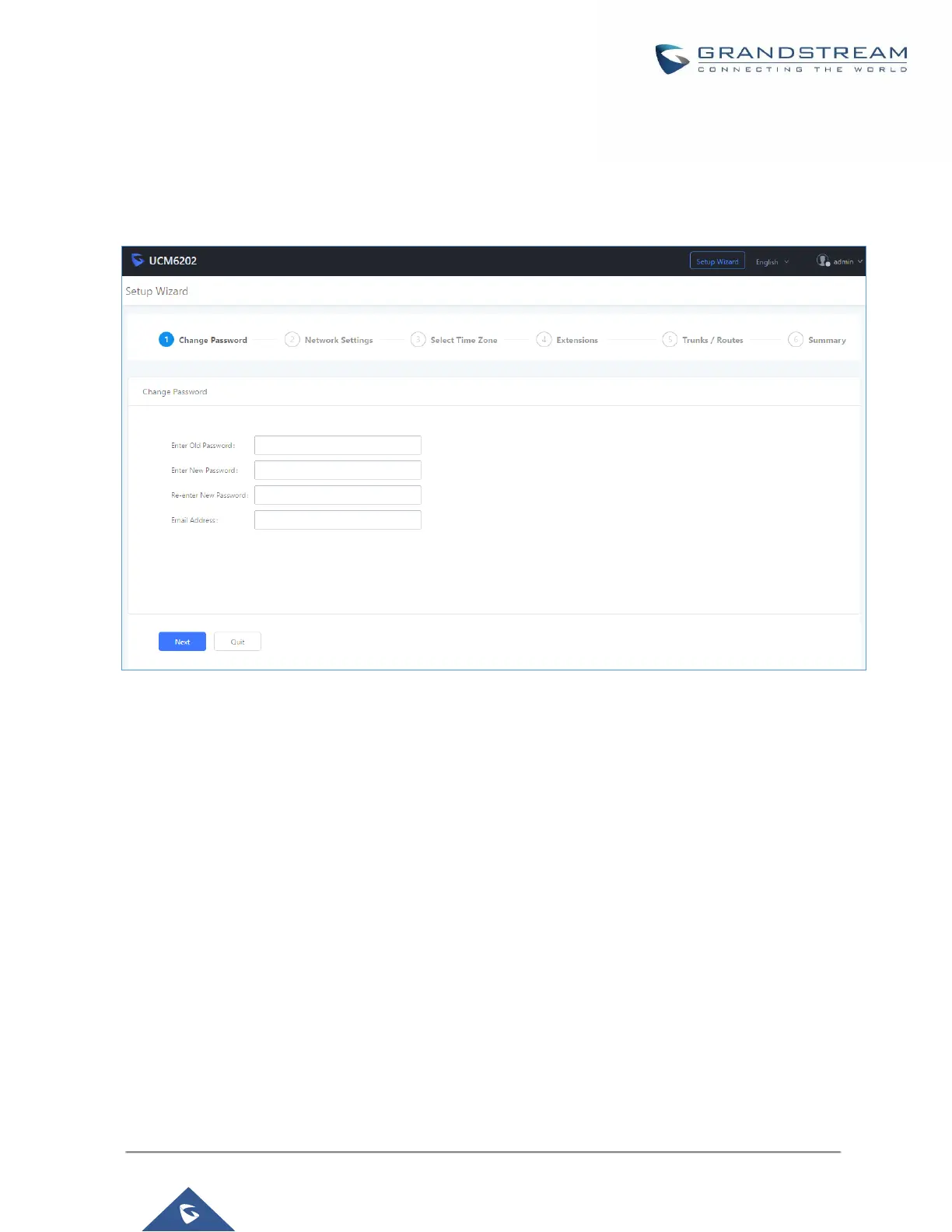

Figure 9: UCM6200 Setup Wizard
Users can disable the Extension Range during configuration on the Extensions.
During the wizard, the user can quit the setup wizard at any time to start over with manual configuration. At the
last step of the wizard, the user will be provided with summary for review, before the configuration is loaded.
Once the setup is completed, the system is ready to go.
Web GUI Configurations
There are eight main sections in the Web GUI for users to view the PBX status, configure and manage the PBX.
• System Status: Displays PBX status, System Status, Active calls and network status.
• Extension/Trunk: To configure extensions, trunks and manage inbound/outbound call routes.
• Call Features: To Configure call features such as ring groups, call queues, IVR ...Etc
• PBX Settings: Extension ranges, SIP Settings, interfaces settings and MOH.
• System Settings: To configure user management, network settings, firewall settings, change password,
LDAP Server, HTTP Server, Email Settings, Time Settings, NTP server and login timeout.
