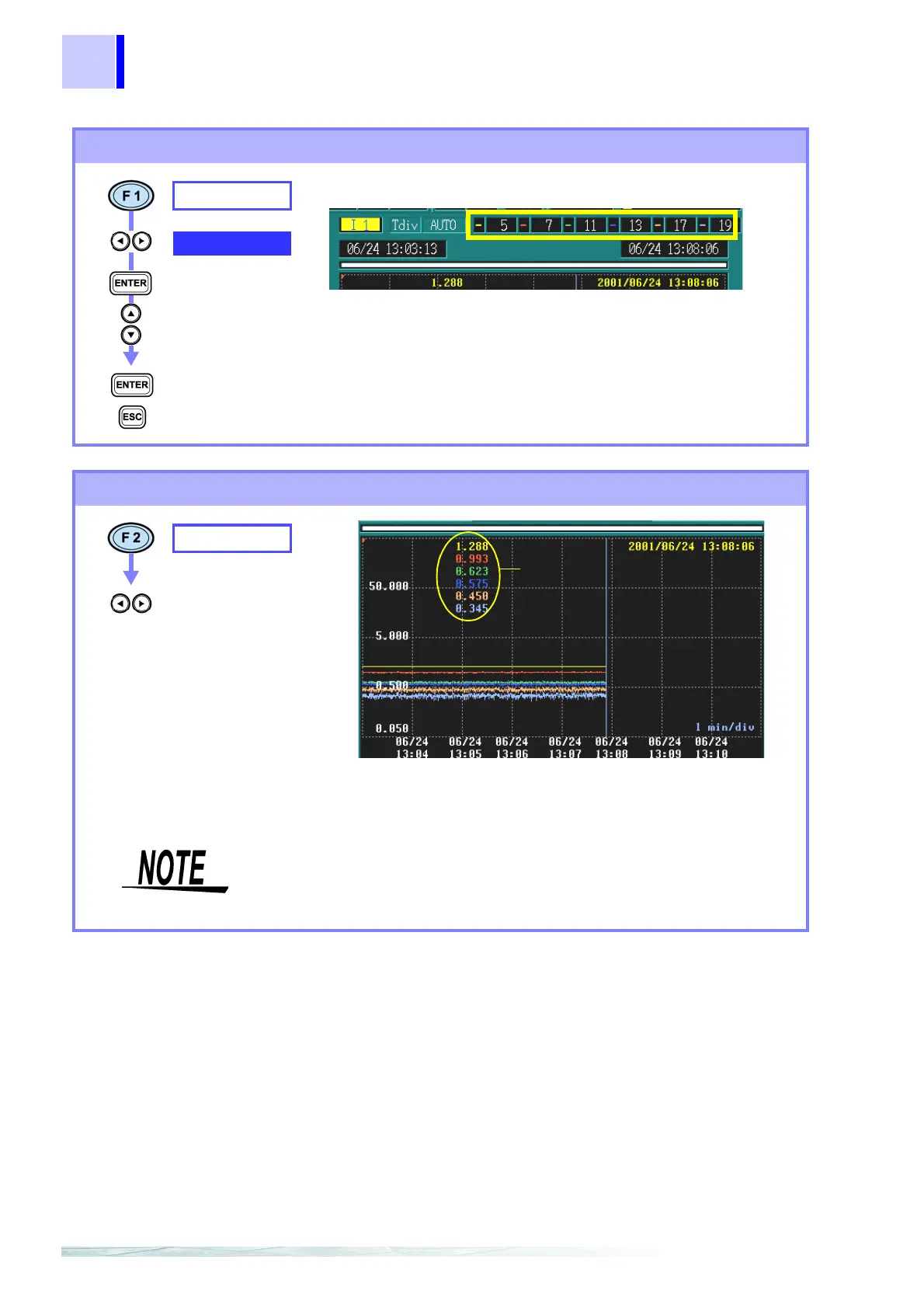

6.5 Changes in Harmonics
102
Changing the order number displayed
SELECT
1
Select from pull-
down menu
Confirm
Cancel
OFF, 1 to 50 (When harmonics DF3[HARM] is selected)
OFF, 0.5 to 49.5 (When Inter-harmonics DF3[INTERHARM] is
selected)
You can select up to six orders and display them simulta
neously.
(Example)
Cursor measurements
When MAX/MIN/AVE is selected in the data type settings (SYS-
TEM-DF2[RECORDING]) as recorded data, the cursor values
indicate MAX values, and when AVE is selected, AVE values are
indicated.
Cursor value
CURSOR
Move the vertical cursor
left and right to read the
display value.
You can read the value above the cursor and the time on
the time series graph.
The cursor value is
the same color as
the selected order.
