Hioki 3196 - Page 171

11.1 Remote Control and Monitoring Using an RS-232C Interface
165

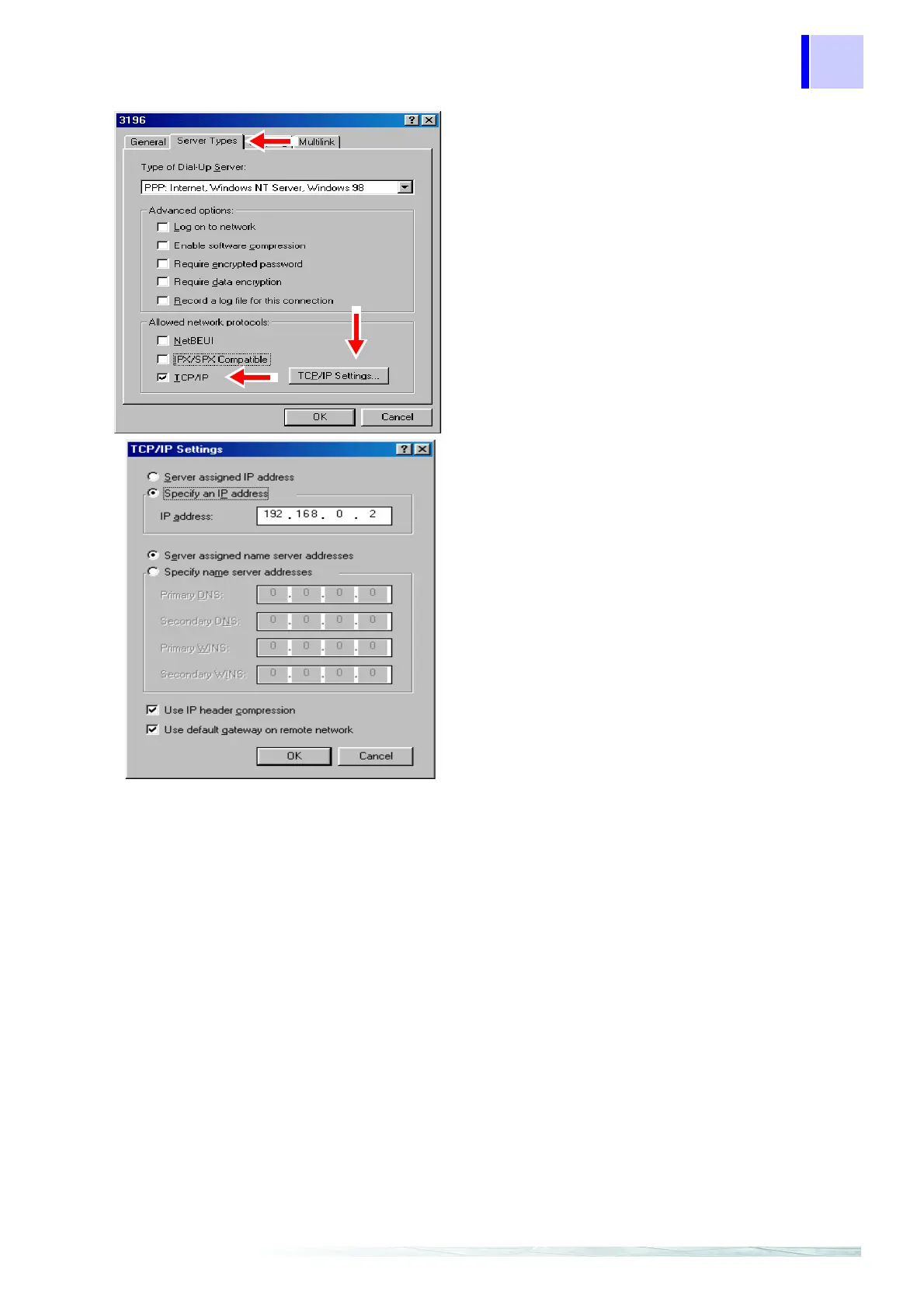

11. Select the [Server Types] tab, an
d
make settings as shown in the dia
-
gram.
Select [TCP/IP] only.
12. Press the [TCP/IP Settings...] button.
* Leave options on other sheets set t
o
their default settings.
13. Once the [TCP/IP Settings] dialog bo
x
opens, make settings as shown in th
e
diagram.
* In [IP address], be careful not to set th
e
same IP address as that set for the 3196
.
For example, if you find that the settin
g
on the computer is 192.168.0.2, then yo
u
could set the address on the instrumen
t
to something like 192.168.0.1.
14. After you have finished making th
e
settings, press the [OK] button.
* If you are having trouble making th
e
connection, remove the [Use IP heade
r
compression] checkmark, and try again
.
