2.2 Screen Names and Configurations
26
You can display the following items on
the DMM display.
• Voltage (U)
• Current (I)
•Active power (P)
• Reactive power (Q)
• Apparent power (S)
• Power factor (PF) or displacemen
t
power factor (DPF)
Displays numerical values for chan-
nels, depending on how they are con
-
nected.
Example: Displays 4, 3P4W (three-
phase four-wire) channels on the DMM
display.
POWER 5.4 "DMM Display"(page 73)
VOLTAGE 5.4 "DMM Display"(page 73)
Press to switch the display screen.
You can display the following items o
n
the DMM display.
• Voltage
• Total voltage distortion
• Voltage waveform peak
• Average voltage value
• Voltage unbalance factor
Displays numerical values for channel
s
on the DMM display, depending on
how they are connected.
Example: Displays 4, 3P4W (three-
phase four-wire) channels on the DMM
display.

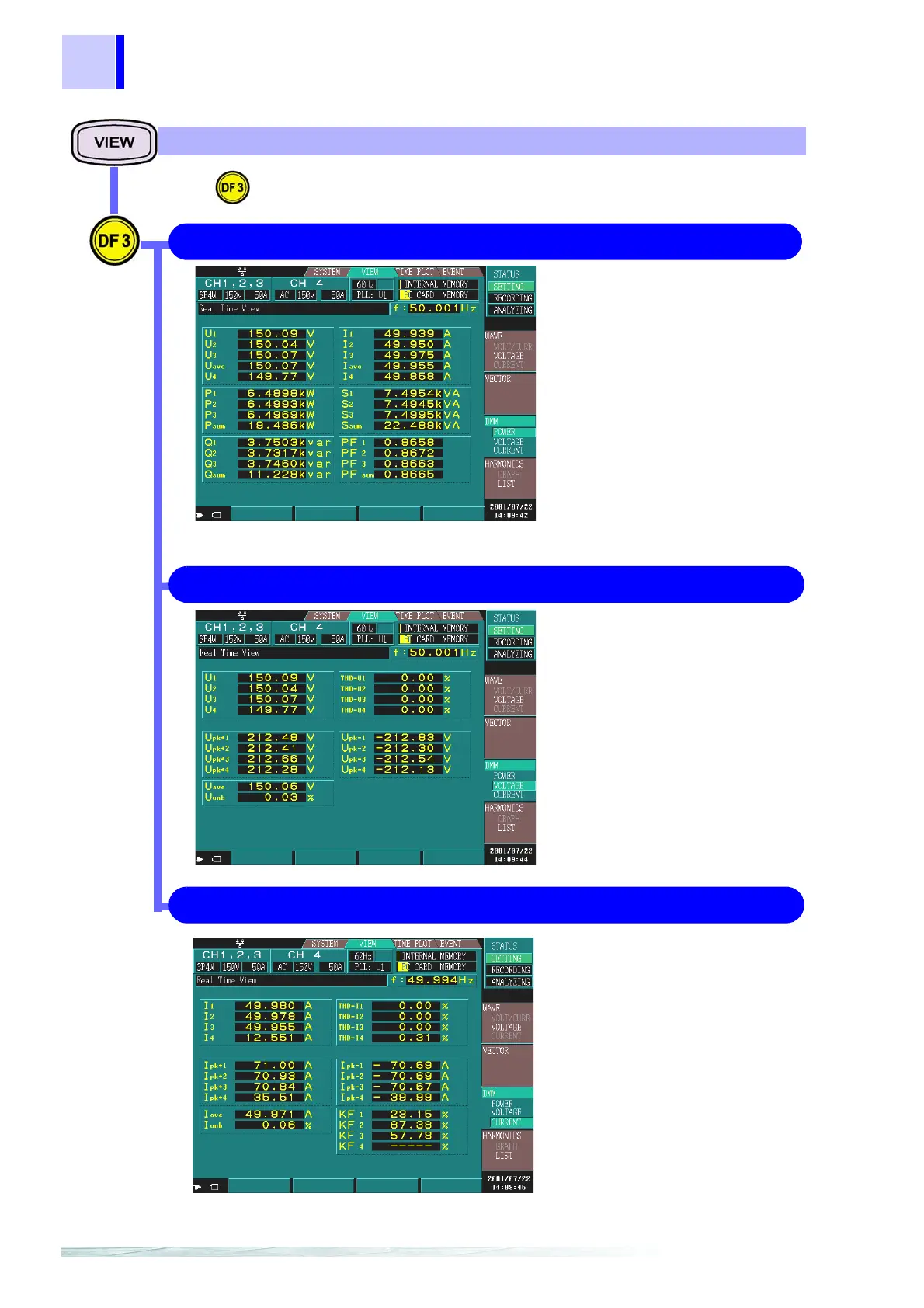

DMM VIEW Screen
CURRENT 5.4 "DMM Display"(page 73)
You can display the following items on
the DMM display.
• Current
• Total current distortion
• Current waveform peak
• Average current value
• Current unbalance factor
Displays numerical values for channel
s
on the DMM display, depending on
how they are connected.
Example: Displays 4, 3P4W (three-
phase four-wire) channels on the DMM
display.
