2.2 Screen Names and Configurations
27

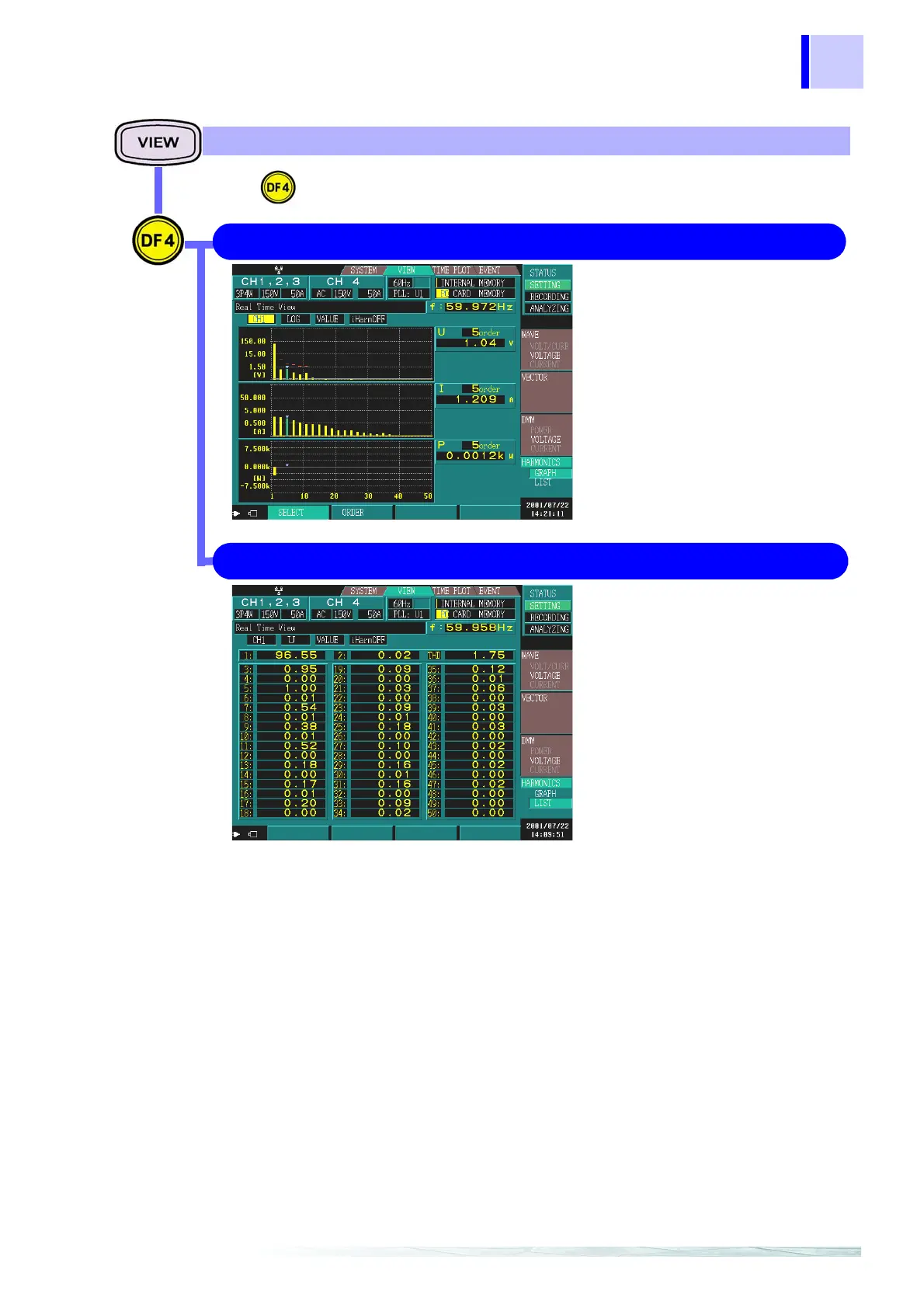

Displays a bar graph for the harmonics
and inter-harmonics.
Displays three bar graphs for the volt-
age, current, and active power simulta
-
neously.
Up to 10th order harmonics can be dis
-
played when measuring 400 Hz.
GRAPH 5.5.1 "Harmonics Bar Graph"(page 74)
LIST 5.5.2 "Harmonics List Screen"(page 76)
Press to switch the display screen.
Displays a list of the harmonics and in
-
ter-harmonics.
Displays the list and distortion of the
selected display items simultaneously
.
Up to 10th order harmonics can be dis
-
played when measuring 400 Hz.
HARMONICS VIEW Screen
