MAINTENANCE AND ADJUSTMENT OF THE UTV
- 102-

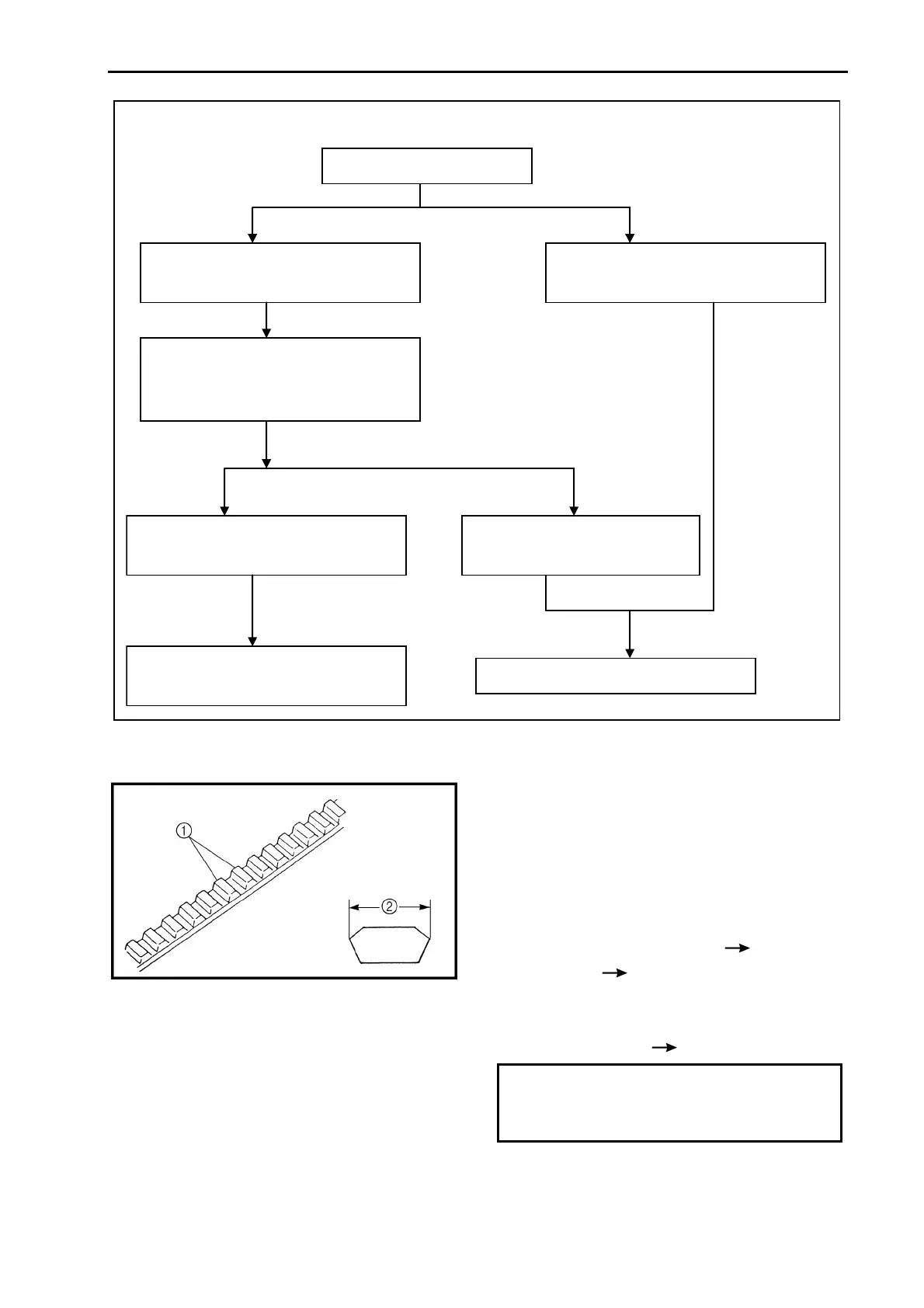

CHECKING THE V-BELT
1. Remove:
·driver seat
·passenger seat
·console
·drive belt cover
·check:
a. V-belt ①
Cracks/wear/scaling/chipping
Replace.
Oil/ grease
Check primary sheave and
secondary sheave.。
b. V-belt width ②
Out of specification
Replace.
V-belt width
33.2 mm (1.31 in)
<Limit:> 29.9 mm (1.18 in)
Coolant temperature warning light checking method
Turn the main switch “ON”.
Coolant temperature warning light
does not come on.
Coolant temperature warning light
come on.
Turn the main switch to “START”
with the transmission in neutral
position.
Coolant temperature warning light
comes on momentarily .
Coolant temperature warning
light does not come on.
Coolant temperature and electrical
circuit are OK .Go ahead with riding.
Check the electrical circuit
To Next Page
