GENERAL INFORMATION

- 3 -

IDENTIFICATION CODE

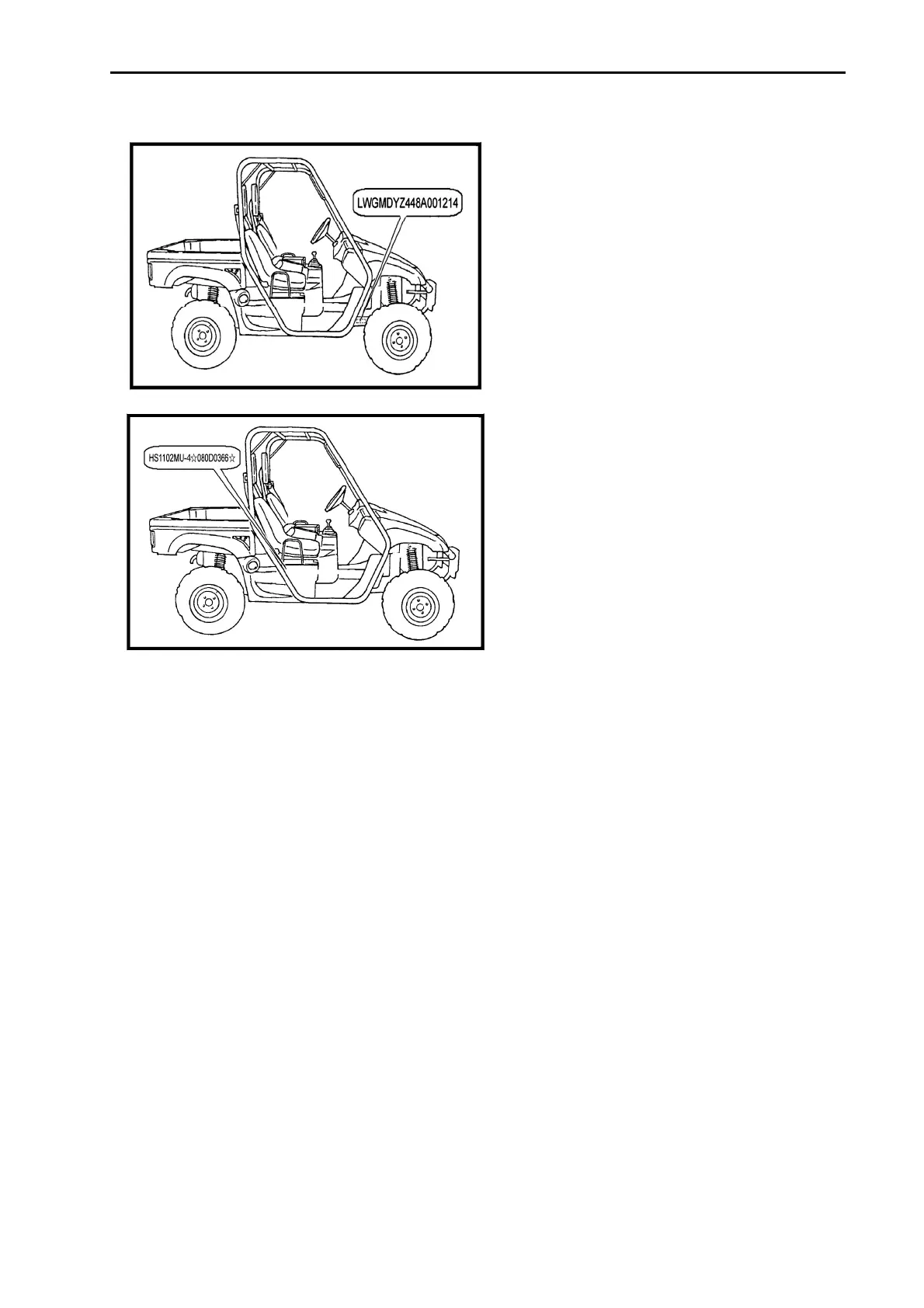

Frame No.

Frame No. is carved in the lower right side of

Figure.

Engine No.

Engine No. is carved on the right side of the

Engine, Figure.
