MAINTENANCE AND ADJUSTMENT OF THE UTV
- 118-

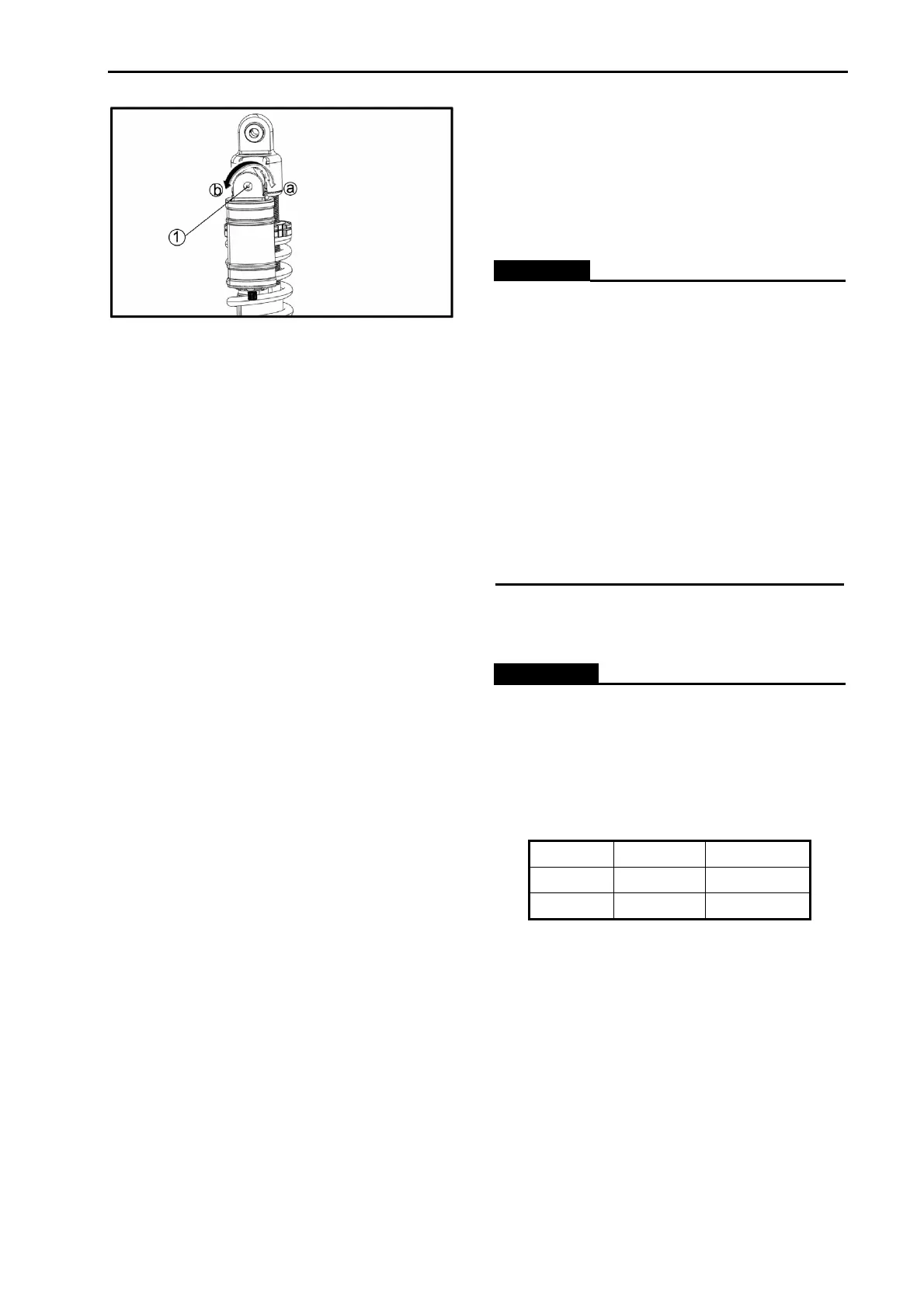

Compression damping force
Turn the compression damping force adjusting
screw ① (use 3.0 allen wrench) in direction ⓐ to
increase the compression damping force and
thereby harden the damping, and in direction ⓑ
to decrease the compression damping force and
thereby soften the damping.
WARNING
:
·Suspension components become ho
during operation. Never touch th
compression damping force adjusting screw,
the rebound damping force adjusting scre
or the oil reservoir with your bare hand o
skin until suspension components have
cooled.
·Always adjust the shock absorbe
assemblies on the left and right side to the
same setting. Uneven adjustment can cause
poor handling and loss of stability, which
could lead to an accident.
CHECKING THE TIRES
WARNING
:
• TIRE CHARACTERISTICS
a. Tyre characteristics influence the handling
of vehicle’s. If other tire combinations ar
used, they can adversely affect you
vehicle’s handling characteristics and ar
therefore not recommended.
Size Type
Front 6PR 25 × 8-12
Rear 6PR 25× 10-12
• TIRE PRESSURE
a. Recommended tire pressure
Front 70Kpa
Rear 70KPa
b. Tyre pressure below the minimum
specification could cause the tire to
dislodge from the rim under severe riding
conditions.
