CHASSIS

- 220-

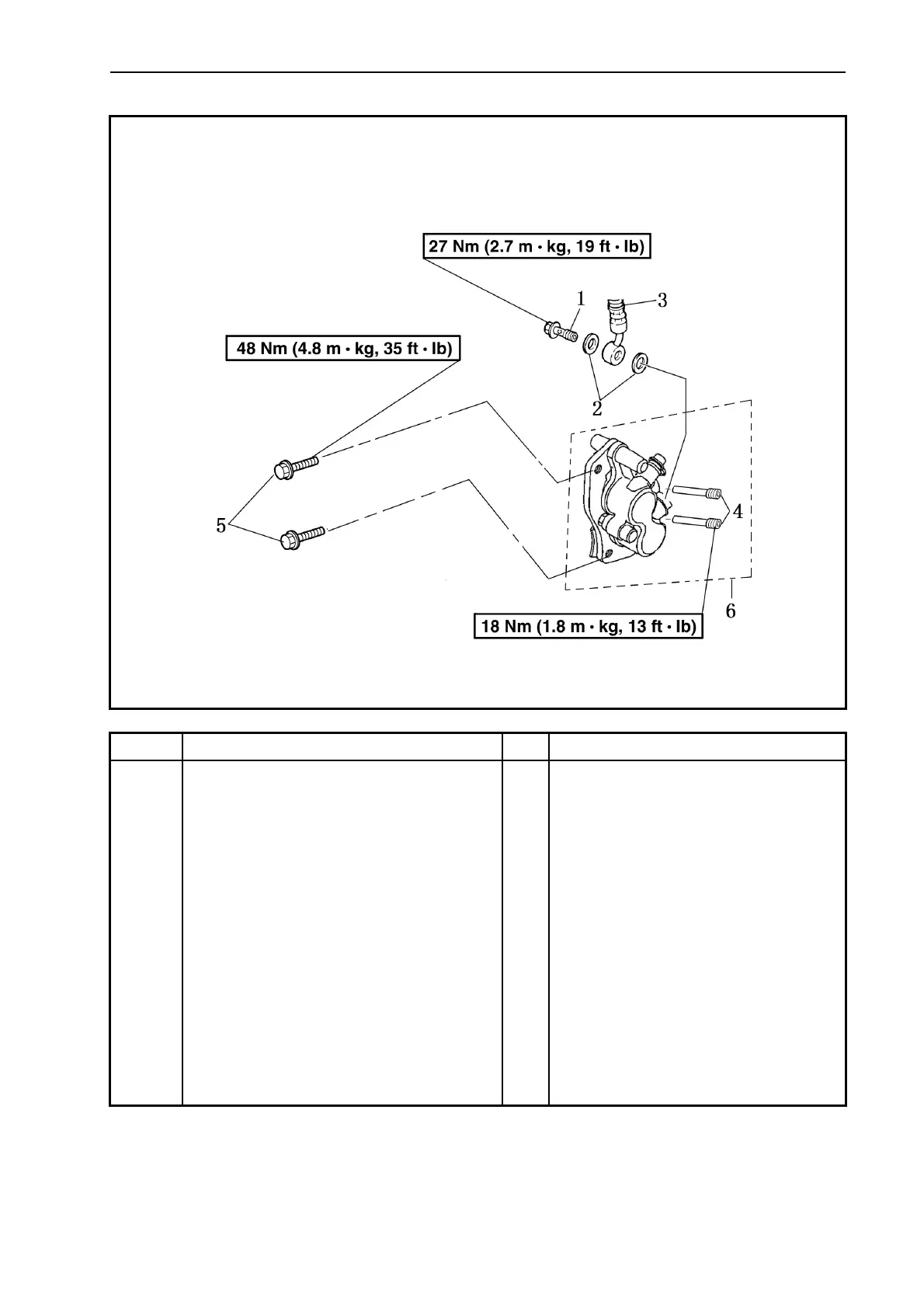

FRONT AND REAR BRAKE CALIPER

No. Part Name Qty Remarks

Removing the brake caliper Remove the parts in the order listed.

Brake fluid

1 Union bolt 1

2 Copper washer 2

3 Brake hose 1

4 Brake pad holding bolt 2

5 Brake caliper mounting bolt 2

6 Brake caliper assembly 1

For installation, reverse the removal

procedure.
