ENGINE

- 176 -

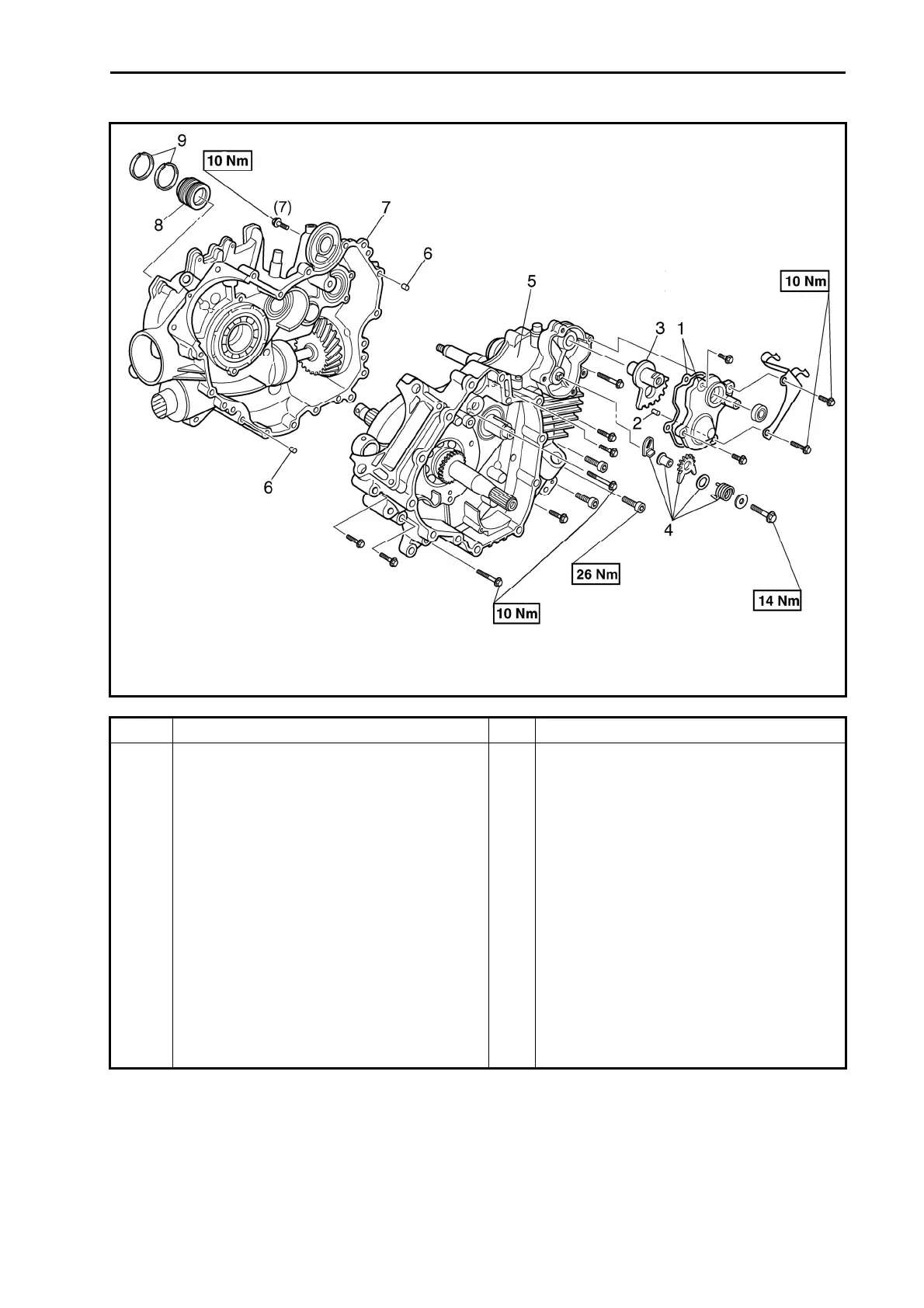

CRANKCASE

No. Part Name Qty Remarks

Separating the crankcase Remove the parts in the order listed.

1 Shift lever cover/gasket 1/1

2 Dowel pin 1

3 Shift lever 1 1

4 Shift lever 2 assembly 1

5 Right crankcase 1

6 Dowel pin 1

7 Left crankcase 1

8 Spacer 1

9 Crankshaft seal 1

For installation, reverse the removal

procedure.
