ENGINE
- 163 -

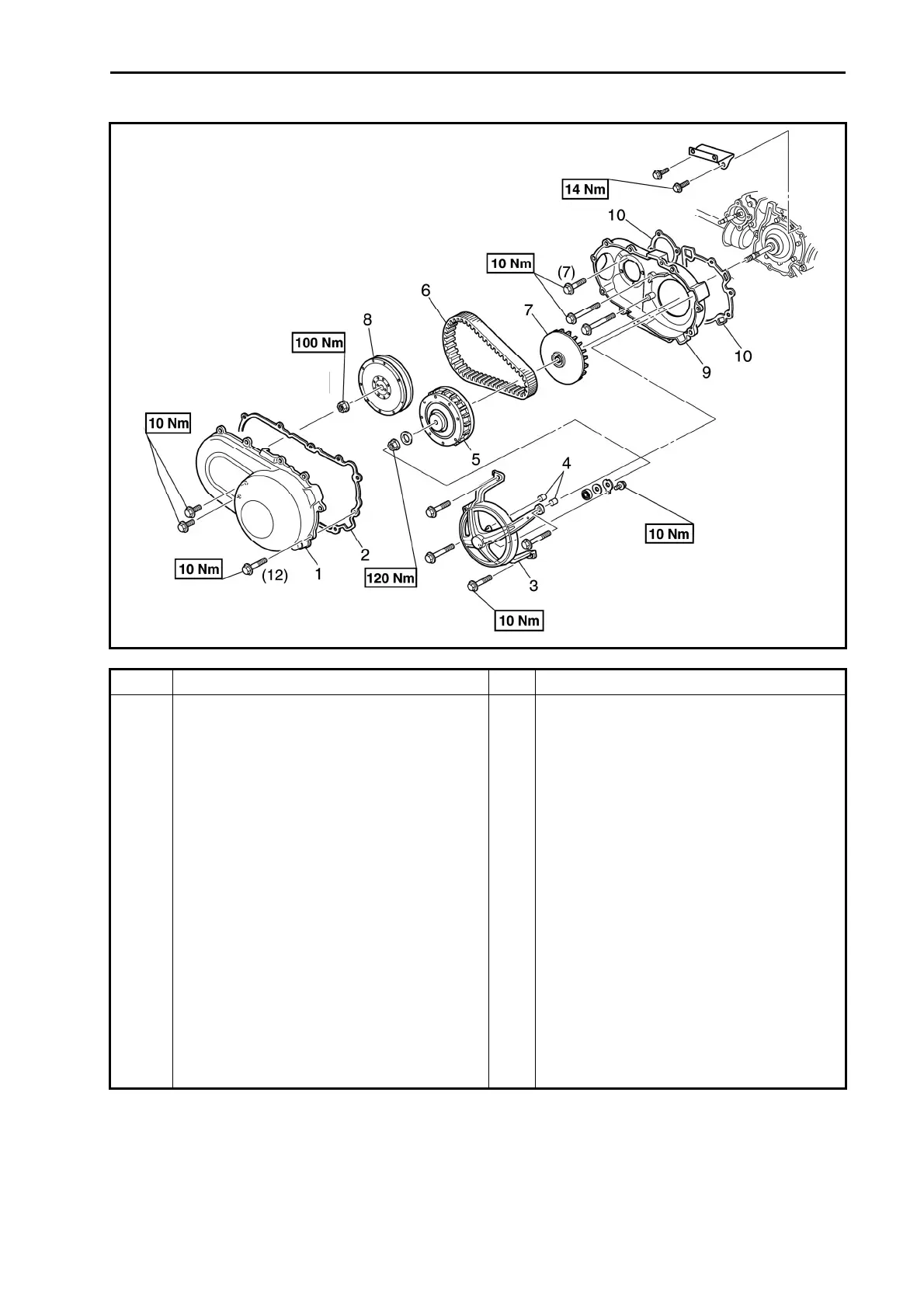

PRIMARY AND SECONDARY SHEAVES
No. Part Name Qty Remarks
Removing the primary and secondary
sheaves
Remove the parts in the order listed.
Engine assembly
1 Drive belt cover 1
2 Rubber gasket 1
3 Bearing housing 1
4 Dowel pin 2
5 Primary sheave assembly 1
6 V-belt 1
7 Primary fixed sheave 1
8 Secondary sheave assembly 1
9 Drive belt case 1
10 Rubber gasket 2
For installation, reverse the removal
procedure.
