Hisun HS700UTV-4 - Middle Gear

To Next Page

To Previous Page

ENGINE

- 190 -

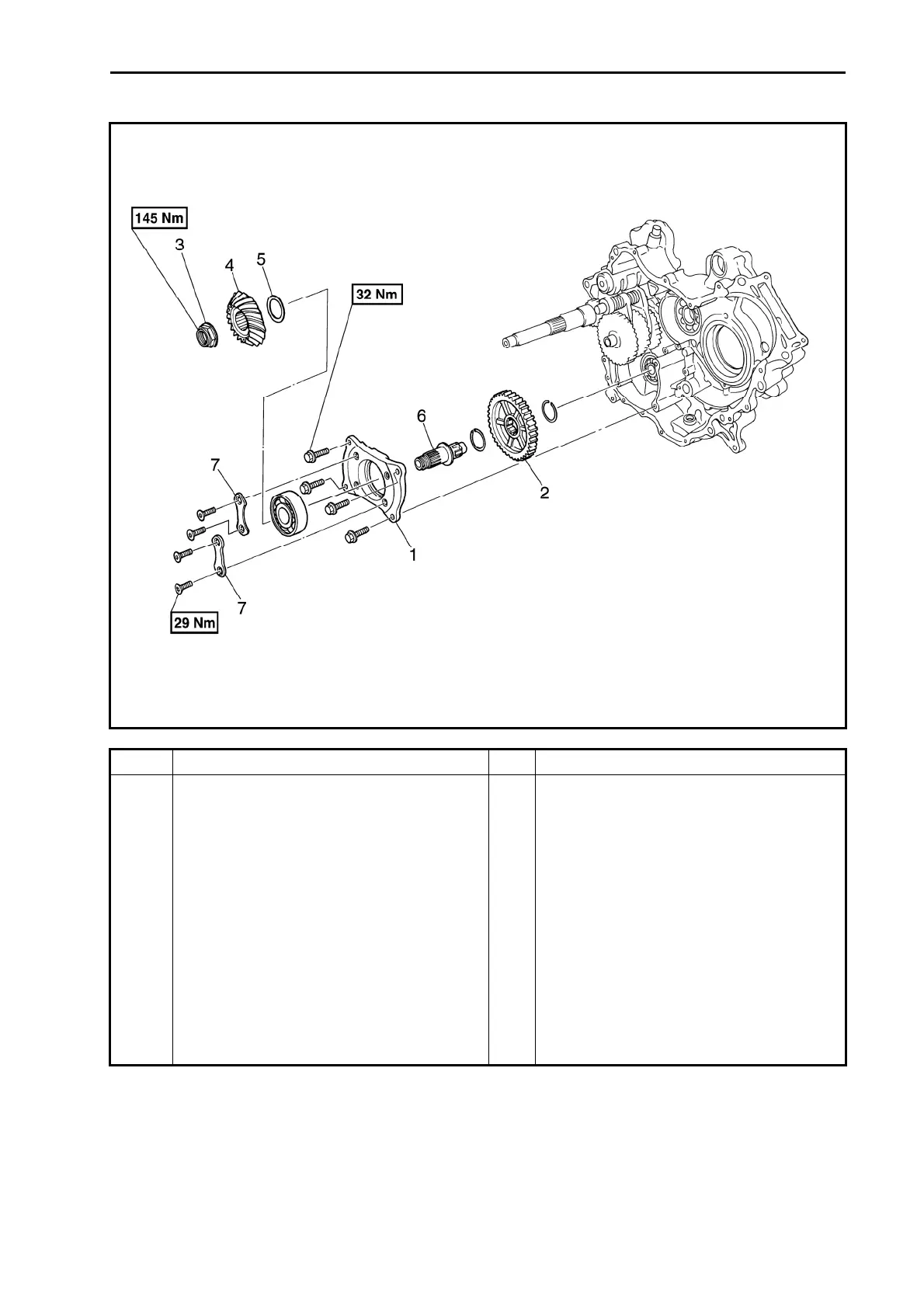

MIDDLE GEAR

No. Part Name Qty Remarks

Removing the middle drive shaft Remove the parts in the order listed.

Crankcase separation

1 Bearing housing 1

2 Middle drive gear 1

3 Nut 1

4 Middle drive pinion gear 1

5 Shim 1

6 Middle drive shaft 1

7 Bearing retainer 2

For assembly, reverse the disassembly

procedure.
